SUS316 JIG G4304 Stainless Steel Plate 1800x6000mm For Structural Parts Shafts

China SUS316 JIG G4304 Stainless Steel Plate 1800x6000mm For Structural Parts Shafts supplier
SUS316 JIG G4304 Stainless Steel Plate 1800x6000mm For Structural Parts Shafts supplier SUS316 JIG G4304 Stainless Steel Plate 1800x6000mm For Structural Parts Shafts supplier SUS316 JIG G4304 Stainless Steel Plate 1800x6000mm For Structural Parts Shafts supplier SUS316 JIG G4304 Stainless Steel Plate 1800x6000mm For Structural Parts Shafts supplier

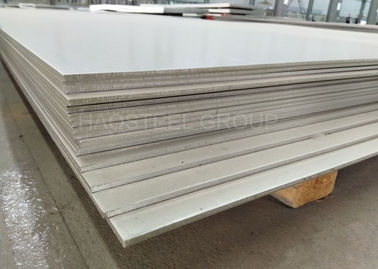

Large Image :  SUS316 JIG G4304 Stainless Steel Plate 1800x6000mm For Structural Parts Shafts

Product Details:

Place of Origin: China
Brand Name: TISCO BAOSTEEL HAOSTEEL
Certification: SGS, BV, CCIC
Model Number: SUS316

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Export Packing
Delivery Time: 5-10 Woking Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Tons per Month
Contact Now
Detailed Product Description
Product: Stainless Steel Plate Standard: JIS G 4304: 2012
Grade: SUS316,SUS316L, SUS316Ti, SUS321,etc. Delivery: Hot Rolled, Annealed And Pickled
Surface: No.1, HL, No.4, Sand Blasting Thickness: 3~200mm
Width: Max 3m Length: Max 15m

SUS316 stainless steel plate JIG G4304 hot rolled pickled heat treatment solution annealing 1800x6000mm

Company Brief Introduction:

HAOSTEEL is one of the most professional manufactuer and supplier of stainless steel plate. Comapny culture: person oriented and customer centered. In the past 30 year, HAOSTEEL make good business relationship with more than 40 countries and regions, aiming to be the world’s most value partner.

Material Brief Introduction:

SUS316 stainless steel is one of the most commonly used stainless steel. Due to the addition of Mo element, the SUS316 stainless steel plate has a great improvement in corrosion resistance and high temperature strength. the stainless steel plate SUS316 can withstand high temperatures up to 1200-1300 degrees and can be used under harsh conditions. Corrosion resistance of 316 stainless steel is better than 304 stainless steel, with good corrosion resistance in the production process of pulp and paper. And SUS316 stainless steel is also resistant to erosion by marine and aggressive industrial atmospheres.
The main uses of stainless steel SUS316 plate are heat exchangers for pulp and paper equipment, dyeing equipment, film processing equipment, pipes, and materials for exterior use in coastal areas. Also used in the field of solenoid valves, mainly used for housings, clamps, spheres, valve bodies, valve seats, nuts, valve stems, etc.

JIS G 4304 include stainless steel plate, stainless steel sheet, stainless steel coil, stainless steel strip.

1. Stainless steel plate is hot rolled thick type, thickness is ≥3mm, supply range is 3~200mm.

2. Stainless steel sheet is cold rolled thin type, thickness is ≤6mm. supply range is 0.01~6mm.

3. Stainless steel coil include both hot rolled and cold rolled, width is ≥600mm, supply range 0.6~2.0m.

4. Stainless steel strip include both hot rolled and cold rolled, width is <600mm, supply range 3~600mm.

Material Specification:

Sr.No Standard Specification Material Grade
1 JIS G 4304: 2012 SUS316
2 ASTM A240 / A240M - 14 S31608 , S31600 , 316
3 EN 10088-2: 2014 1.4401

Chemical Composition:

Sr.No Grade C Mn P S Si Cr Ni Mo N
1 SUS316 0.08 2.00 0.045 0.030 0.75 16.0-18.0 10.0-14.0 2.0-3.0 -
2 316 0.08 2.00 0.045 0.030 0.75 16.0-18.0 10.0-14.0 2.0-3.0 0.10
3 1.4401 0.07 2.00 0.045 0.030 1.00 16.5-18.5 10.0-13.0 2.0-2.5 0.11

Mechanical properties:

Grade Unit Tensile Strength Yield Strength Elongation Hardness, Max
MPa, min Mpa, min %, min HB HRB HV
SUS316 520 205 40 187 90 200
316 515 205 40 217 95 -
1.4401 520-670 220 45 - - -

Application:

1. Tools, cutting tools, tableware, stamping products.
2. Mechanical manufacturing, solid parts, structural parts, shafts, bearings.
3. Construction, heavy oil burner parts, household appliance parts.
4. Petroleum and petrochemical, power industry, pressure vessels, boilers.
4. Transportation, tank trucks, metal products, machinery manufacturing.
5. Decoration, welded pipe, automobile exhaust pipe, modified rolling, cold rolled plate.

Export Packing:

1. Unit weight: 2-3tons per package or as client request.

2. Packing Type: strong wooden pallet and steel strip reinforcement, or as clients' request.
