ERNiCrMo-3 Stainless Steel Mig Welding Wire / 790MPA Inconel 625 Welding Wire

Negotiation
MOQ
Negotiation
Price
ERNiCrMo-3 Stainless Steel Mig Welding Wire / 790MPA Inconel 625 Welding Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Product: ERNiCrMo-3 Mig Welding Wire Welding INCONEL ALLOY 625 800
Standard: GB , JIS, ASTM , AISI , DIN
Grade: ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1, ER70S-6.
Surface: Uniform And Beautiful, With Linear Stability.bright, Pickled, Black
Material: Nickel / Nickel Alloy
Application: Welding Wire, Spring Wire, Binding Wire
Dimensions: 0.8mm-5.0mm
Packing: Packing Is Good And The Price Is Favorable
Tensile Strength: 790MPA
High Light:

stainless steel coil wire

,

galvanized steel wire

Basic Infomation
Place of Origin: CHINA
Brand Name: HAOSTEEL
Certification: ISO9001,CE,BV,SGS
Model Number: ERNiCrMo-3
Payment & Shipping Terms
Packaging Details: Woven bags and plastic strips inside packing, wooden / iron pallet and steel strips outside packing.
Delivery Time: 5-10 working days after order confirmed and receive deposit
Payment Terms: L/C, T/T
Supply Ability: 1000tons per month
Product Description

ERNiCrMo-3 Mig Welding Wire welding INCONEL ALLOY 625 800





Description:

ERNiCrMo-3 material is suitable for the welding of nickel based alloys such as Inconel 625 and Incoloy 825, but also for dissimilar welds, e. G. Between stainless and nickel-based alloys and mild steel.

Standard: AWS A5.14 EN18274 ,ASME II, SFA-5.14, ERNiCrMo-3

Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

Form: MIG(15kg/spool), TIG(5kg/box),Strip

Usage: used for welding the INCONEL ALLOY 600/825/25-6MO, and other stainless steel with Mo by the way of gas metal arc welding, tungstun-inert-gas arc welding.



Chemical Composition:

Grade % Ni Cr Fe Mo Nb Co C Mn Si S Cu Al Ti
Alloy 625 Min 50 17 Rest 2.8 4.75
Max 55 21 3.3 5.5 10.0 0.08 0.35 0.35 0.015 0.3 0.8 1.15



Minimum mechanical properties in the room temperature:

Alloy Tensile strength Rm N/mm² Yieldstrength R P0. 2 N/mm² Elongation(%) Brinell hardness HB
625 760 345 30 ≤220



Stainless steel wire, also called stainless steel wire, wire rod, pan yuan, but unlike stainless steel wire rope. Main wire spring wire and screws line two, as the name implies: the line is mainly used to do screw, screw and spring wire used for spring or other requirements of flexible hardware products. Other light line, for example, hydrogen annealing line, electrolytic line, axle pin line. The tensile strength of 1500-2000. The hardness of spring line has the following kinds: the soft hard | | a quarter and a half hard hard | | 3/4 full hard | hard. Can be used in chemical, petroleum, food, energy, electric power, aerospace, environmental protection, boiler heat exchanger, etc.


INCONEL 625 is an austenitic superheat alloy with nickel as the main component.
Stems from a nickel-chromium alloy contains molybdenum, niobium, solid solution strengthening effect in the low temperature to 1093 ℃, has the remarkable ultra-high strength, fatigue characteristics, is widely used in aviation industry.
Although the alloy is designed to adapt to the strength of the high-temperature environment, the high content of chromium and molybdenum in the alloy has high corrosion resistance to corrosion spots and fission corrosion and excellent corrosion resistance to a variety of corrosion media, from the highly oxidized environment to the general corrosion environment.
INCONEL 625 also has strong corrosion resistance against chloride contaminated media such as seawater, geothermal water, neutral salts and brine.


Form a complete set of welding material and welding process: the AWS Inconel625 alloy welding recommended A5.14 wire ERNiCrMo ENiCrMo - 3-3 or AWS A5.11 electrode, welding material size Φ 1.0, 1.2, 2.4, 3.2, 4.0, origin for: America hartz, SMC and nickel, welcome calls for welding procedure and instructions.
Inventory: 625 alloy board inventory spot size is 0.5 mm - 10 mm, bar inventory spot size 12 mm - 220 mm Φ Φ, pipe fitting and other can be customized according to customer's requirements.Materials are mainly produced in the United States Haynes, the United States SMC, the United States metallurgical technology ATI, Germany thyssenkrupp VDM.Provide original material certificate, customs declaration and certificate of origin.


Application areas include: organic chemical process parts containing chloride, especially in the use of acidic chloride catalysts;
Digesters and bleaching tanks for the manufacture of pulp and paper industries;
Absorption tower, reheater, flue gas inlet baffle, fan (wet), agitator, guide plate and flue duct in flue gas desulfurization system;
Equipment and components for the manufacture of applications in an acid gas environment;Reaction generator of acetic acid and acetic anhydride;Sulfuric acid condenser;Pharmaceutical equipment;Bellows expansion joint and other industries and products.

Products Show

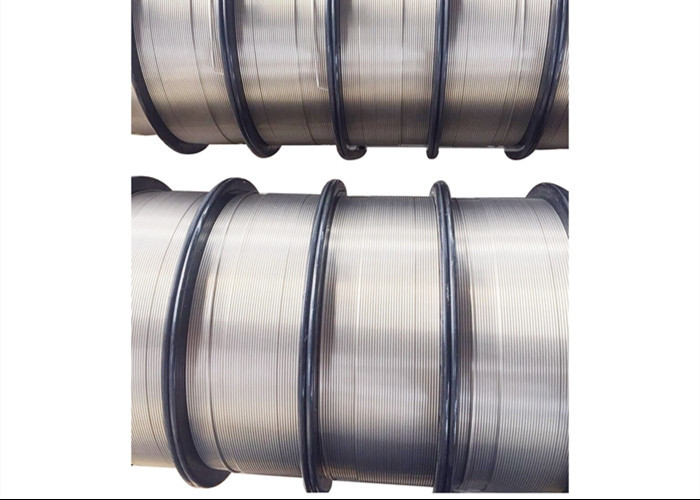

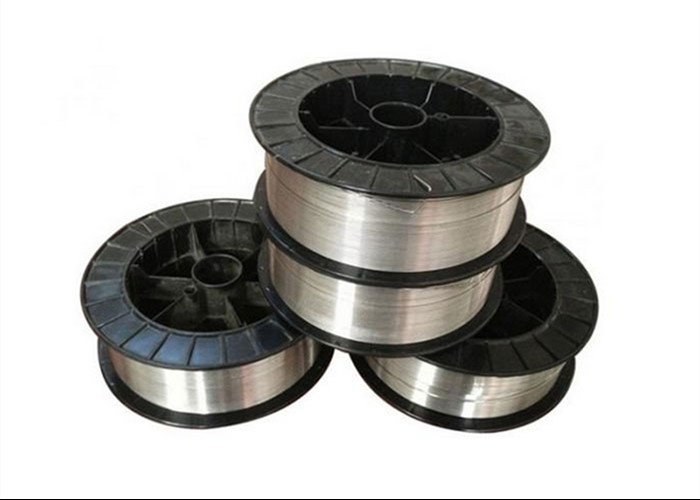

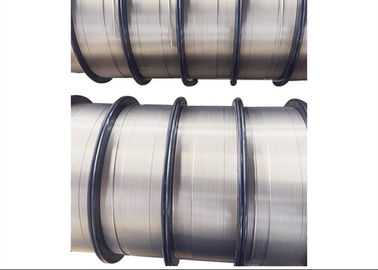

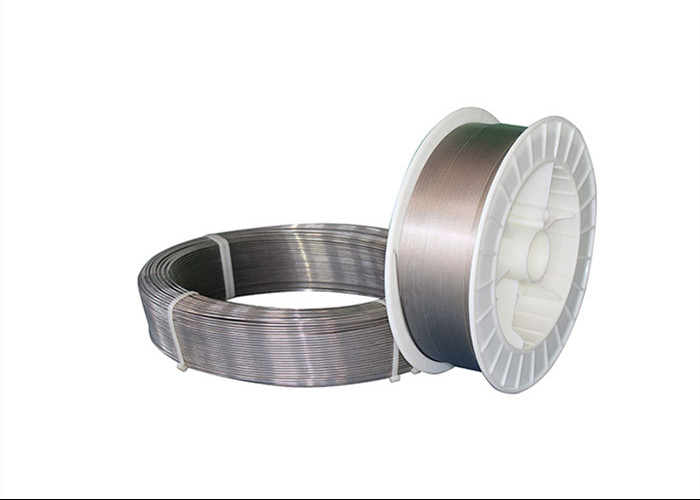

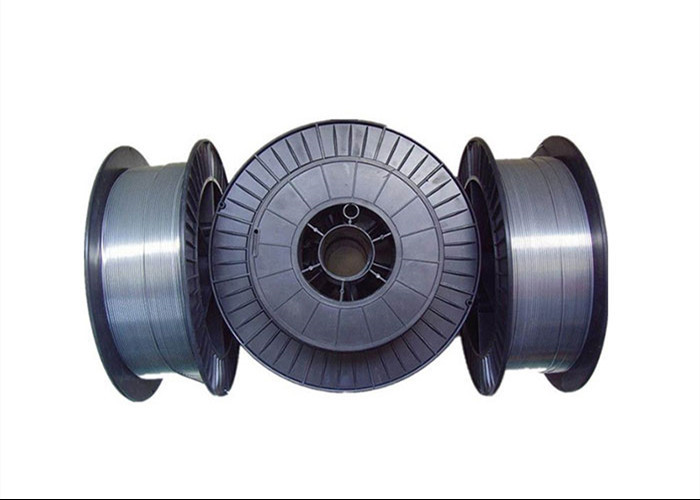

ERNiCrMo-3 Stainless Steel Mig Welding Wire / 790MPA Inconel 625 Welding Wire 0

The characteristics:
1) cold rolled products have good gloss and beautiful appearance;
2) excellent corrosion resistance, especially pitting corrosion resistance, due to the addition of Mo;
3) excellent high-temperature strength
4) excellent working hardenability (weak magnetism after processing)
5) no magnetism in the solid solution state;

Product Application

1). Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire,
2). Conveyors, jewelry, springs, brush welding, electrical, wire line, craft , bicycle fittings
3). Kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets
4). Food and medical machinery accessions
Used in equipment, chemistry, dyestuff, paper making, oxalic acid, fertilizer, etc.Photo, food industry, coastal facilities, ropes, CD rods, bolts, nuts

Our advantage
Our range of Wire made of Stainless Steel are not only known for their variety but are also known for their good quality, long life and very reasonable prices. Quality and service is our first priority, we effectively use technically advanced machinery equipment and the expertise of our work to deliver our stainless steel wired products
