Stainless Steel 410 309s 310s 316L Plate 304 Stainless Steel Sheet / Coil
Product Description
The most common grades that haosteel group offer are 200,300 and 400 series; hot rolled and cold rolled sheet, such as 201,304,304L, 321,316L, 410, 420 and 430 are all available on request.Stainless steel sheet The stainless steel plate is divided into two types of hot rolling and cold rolling according to the manufacturing method, and is divided into five types according to the structure characteristics of steel: austenite body type, austenite - ferritic body type, ferritin body type, martensite body type, precipitation-hardening type.
Specified Properties
|
Item |
Stainless steel 201 304 316 310 410 420 430 plate/sheet/coil/strip |
|
Standard |
ASTM A276-06 ASTM A479/A479M-06 ASTMA582/A582M-05 EN 10088-3-2005 EN 10095-99 |
|
|
ASTM Standard: A240, A480. Grade: 201,202,301,304,304L304N,304LN,305,309S,310S,316Ti,316N,316LN,317,317L,321, |
|
ENStandard:1.4372,1.4373,1.4319,1.4301,1.4306,1.4315,1.4303,1.4833,1.4845,1.4571,1.4429, 1.4438,1.4541,1.455,1.4477,1.4462,1.4002,1.4512,1.4016,1.4509,1.4006,1.4021,1.4028,etc. |
|
|
Thickness |
0.01mm - 200mm |
|
Width |
1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,3000mm,3500mm,etc |
|
Length |
5.8m,6m,8m,11.8m,12m or as customers' request |
|
Surface |
2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand |
|
End |
Plain ends or Beveled ends. |
|
Application |
Decoration,construction,industry instrument. |
Surface Treatment and characteristic
| Surface finish | Characteristics and application |
| NO.2B |
The surface brightness and flatness of no2B is better than no2D. then through a special surface treatment to improve its mechanical properties,No2B could nearly satisfy compreh ensive uses. |
| NO.1 |
The surface is finished by heat treatment and pickling or processes corresponding thereto after hot rolling. |
| NO.4 |
Polished with abrasive belt of grit #150-#180,have better brightness with discontinuous coarse stria,but thinner than No3, are used as bathtub buildings inner and external ornaments electrical appliances kitchen utensils and food processing equipment etc. |
| HL |
Polished with abrasive belt of grit #150#320 on the NO.4 finish and has continuous streaks,mainly used as buildingsornaments elevators,door of building,frontal plate etc. |
| BA |
Cold rolled, bright annealed and skin-passed, the product have excellent brightness and good reflexivity like mirror,kitchen apparatus,ornament etc. |
| 8K | The product have excellent brightness and prefer reflexivity can to be the mirror. |
Chemical Composition about stainless steel sheet coil
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | ≤0.03 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.03 | ≤0.60 | 16.0-18.0 | - |

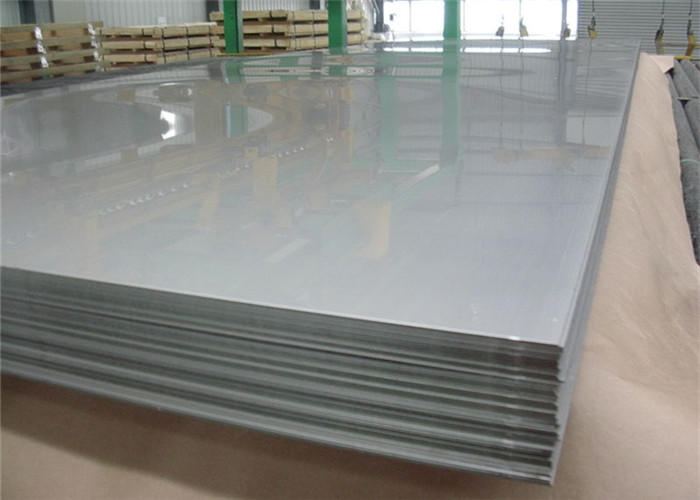

Product show:
Surface area:
With a surface area greater than BA, 2B, NO.1 (white skin), 2D, NO.4 (abrasion), HL (rath), 8K upper and luminous surface area
Scope of application: oil, electronics, chemistry, medicine, textiles, food, machinery, construction, nuclear energy, aeronautics, military industry, etc.
