Hastelloy C4 N2.4610 Alloy steel bar pipe plate wire coil Hastelloy C276 C C22 C4 B B3 X alloy steel
Hastelloy is a nickel-based corrosion-resistant alloy, which is mainly divided into nickel-chromium alloy and nickel-chromium-molybdenum alloy. Hastelloy has good corrosion resistance and thermal stability, and is used in aviation and chemical fields. Hastelloy is the general name for the commercial grades of nickel-based corrosion-resistant alloys produced by Hastelloy International.
Material grade: Hastelloy C-4 Hastelloy US grade: UNS N06455 German brand: W.Nr.2.4610
Hastelloy C4 alloy is an austenitic low carbon nickel-molybdenum-chromium alloy. The main difference between alloys of other similar chemical compositions developed earlier is titanium with a low carbon, silicon, iron, tungsten content and a stabilizing element. Such a chemical composition is more suitable for the manufacture of corrosion resistant equipment that requires soldering, as well as good cold thermoplasticity. It exhibits good stability at 650-1040 ° C, improves the resistance to intergranular corrosion, and avoids edge line corrosion sensitivity and weld heat affected zone corrosion under appropriate manufacturing conditions. It also improves the thermal stability of the alloy. Under most conditions, it is the same as Hastelloy C and Hastelloy C276, but it is less resistant to pitting and crevice corrosion than C276 but better than Hastelloy C276 in oxidizing media.
Complete specifications, stock in stock

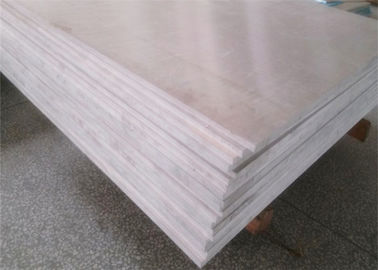

Strip, sheet (thick plate, medium plate, sheet, steel plate), bar (black bar, light bar, grinding bar, round bar, square bar, steel bar), pipe (capillary, seamless pipe, steel pipe), Forgings (flanges, elbows, bolts, nuts, tees), welding consumables (welding rods, welding wire, welded pipes), wire and other materials.
Hastelloy C-4 N06455 Hastelloy is an austenitic low carbon nickel-molybdenum-chromium alloy. The main difference between Nicrofer 6616hMo and other alloys of similar chemical composition developed earlier is the low carbon, silicon, iron, and tungsten content. Such a chemical composition exhibits excellent stability at 650-1040 ° C, improved resistance to intergranular corrosion, and avoids edge line corrosion sensitivity and weld heat affected zone corrosion under appropriate manufacturing conditions.
1. Features of Hastelloy C-4 (N06455) Hastelloy:
(1) Excellent corrosion resistance to most corrosive media, especially in the reduced state.
(2) Excellent local corrosion resistance in halides.
Chemical Composition Of Hastelloy C-4
| C≤ | Si≤ | Mn≤ | P≤ | S≤ | Cr≥ | Ni≥ | Mo≥ | Cu≤ |
| 0.09 | 0.5 | 1.00 | 0.035 | 0.030 | 14.5-17.5 | Re | 14.0-17.0 | - |
| N≤ | Al≤ | Ti≤ | Fe≤ | Co≤ | V≤ | W≤ | Nb≤ | |
| - | - | 0.70 | 3.00 | 2.00 | - | - | - |
Hastelloy C-4 (N06455) Hastelloy physical properties:
(1), Hastelloy C-4 (N06455) Hastelloy density: ρ = 8.6g / cm3,
(2), Hastelloy C-4 (N06455) Hastelloy melting temperature range: 1335 ~ 1380 ° C.
Hastelloy C-4 (N06455) Hastelloy Mechanical Properties:
The minimum values in the table below are the measured data in the longitudinal and transverse directions of the calibration size specimen (solution treatment). The specifications and special material properties can be customized according to customer requirements.
Hastelloy C-4: ISO-V notch test: average ≥ 120 J/cm 2 (room temperature), ≥ 120 J/cm 2 (-196 ° C).
Hastelloy C-4 (N06455) Hastelloy metallurgical structure:
Hastelloy C-4 is a face-centered cubic lattice structure with chemical composition that guarantees metallographic stability and resistance to Hastelloy C-4 (N06455) Hastelloy gold:
The high molybdenum and chromium content makes Hastelloy C-4 alloy resistant to attack by various chemical media, including reducing media such as phosphoric acid, hydrochloric acid, sulfuric acid, chlorine, organic or inorganic chlorine-containing media. Due to its high nickel content, Hastelloy C-4 is effective against stress corrosion cracking due to chlorine, even hot chloride solutions.
Specifications
| Product Name | alloy bar & steel bar |
| Production Process | Cold Drawn,Cold Rolled,Hot Rolled,Bright Anneal etc |
| Size | 5.5-800mm(Hot rolled), 2-50mm(Cold drawn),110-500mm(Forged) |
| Standard | ASTM EN DIN GB ISO JIS |
| Tolerance | +/-0.05 ~+/0.02 |
|
Surface
|
Pickling,Bright; No.1,2B,No.4,BA,8K Satin,Brush,Hairline,Mirror,Polished 180 grits,320 grits,400 grits,600 grits,800 grits polished |
| Application | Constructions feilds and ship building industries Petroleum,Chemical industries,War and electiciy industries. Food processing and medical industries. Boiler heat cxchangers,Machinery and hardware feilds. |
| Materials |
Titanium alloy:TI-6AL-4V,TI-5AL-2.5SN,TA1,TA2,TA3,TA4,TA0,TC4 200series:201 202 |
Hastelloy C-4 (N06455) Hastelloy Gold Processing Properties:
1. Hastelloy C-4 Hastelloy processing and heat treatment: Hastelloy C-4 alloy can be manufactured and processed by traditional production processes.
2. Hastelloy C-4 Hastelloy heating: The workpiece should be kept clean and free of contamination before and during heat treatment.
Do not touch sulfur, phosphorus, lead and other low-melting metals during the heat treatment. Otherwise, Nicrofer 6616 hMo alloy will become brittle. Care should be taken to remove contaminants such as marking paint, temperature indicating paint, colored crayons, lubricating oil and fuel.
The lower the sulfur content in the fuel, the better, the sulfur content in natural gas should be less than 0.1%, and the sulfur content in heavy oil should be less than 0.5%. Electric furnace heating is a better choice because the electric furnace can precisely control the temperature and the furnace gas is clean. If the gas of the gas furnace is pure enough, you can also choose. The furnace gas of the heating furnace is preferably neutral to slightly reducing, and the furnace gas should be prevented from fluctuating between oxidizing and reducing properties, and the heating flame cannot be directly burned to the workpiece.
3, Hastelloy C-4 Hastelloy thermal processing: Hastelloy C-4's hot processing temperature range of 1080 ° C ~ 900 ° C, cooling method is water cooling or other rapid cooling. In order to ensure the best corrosion resistance, solution heat treatment should be carried out after hot working.
4. Hastelloy C-4 Hastelloy cold working: The workpiece should be solid solution heat treated during cold working. The Hastelloy C-4 has a higher work hardening rate than austenitic stainless steel, so the processing equipment needs to be selected. There should be an intermediate anneal during the cold rolling process. If the cold rolling deformation is greater than 15%, the workpiece needs to be subjected to secondary solution treatment.
5, Hastelloy C-4 Hastelloy heat treatment: Hastelloy C-4 solution treatment temperature range is 1050 ° C ~ 1100 ° C. For materials with a thickness of less than 1.5 mm, the recommended cooling method is water quenching or rapid air cooling for maximum corrosion resistance. The workpiece must be kept clean during the heat treatment.
6. Hastelloy C-4 Hastelloy Scale: The surface oxide of Hastelloy C-4 and the weld slag around the weld are stronger than stainless steel. It is recommended to use fine-grained or fine-grained wheels for sanding. The oxide film must be broken by sandblasting or sanding before pickling with HNO3/HF mixed acid.
7. Hastelloy C-4 Hastelloy Machining: The machining of Hastelloy C-4 is carried out in an annealed state. Due to the high work hardening of the Nicrofer 6616 hMo, it is advisable to use a low cutting speed and a re-feeding knife to drive into the underlying surface of the cold-hardened surface.
8, Hastelloy C-4 Hastelloy welding: Hastelloy C-4 can be welded by various welding processes, such as tungsten electrode inert gas shielded welding, plasma arc welding, manual sub-arc welding, metal inert gas shielded welding, melting inertia Gas shielded welding. Pulse arc welding is preferred.
Before welding, the material needs to be annealed to remove oxide scale, oil stains and various marking marks. The sides of the weld are about 25mm wide and need to be polished to a bright metal surface. With low heat input, the interlayer temperature does not exceed 150 °C. This steel grade does not require pre-weld and post-weld heat treatment. Recommended filler metal: wire: ERNiCrMo-7, electrode: ENiCrMo-7.
To get the most suitable corrosion resistance, first consider argon arc welding GTAW. GTAW and SMAW use the same welding material as the base metal.
Hastelloy C-4 Hastelloy application range:
Hastelloy C-4 is widely used in most chemical and high temperature environments.
Typical application areas: flue gas desulfurization systems, pickling and acid regeneration plants, acetic acid and agrochemical production, titanium dioxide production (chlorine), deplating, etc.Flue gas desulfurization system
Pickling and acid recycling plant,Production of acetic acid and agrochemicals,Titanium dioxide production (chlorine method)
Hastelloy C-4 Hastelloy specifications and supply status:
1. Variety classification: Shanghai haosteel co, LTD can produce various specifications of Hastelloy C-4 seamless pipe, Hastelloy C-4 steel plate, Hastelloy C-4 round steel, Hastelloy C-4 forging, Hastelloy C-4 flange, Hastelloy C-4 ring, Hastelloy C-4 welded pipe, Hastelloy C-4 steel strip, Hastelloy C-4 wire and matching welding consumables.
2, delivery status: seamless pipe: solid solution + acid white, length can be fixed; sheet: solid solution, pickling, trimming; welded pipe: solid solution acid white + RT% flaw detection, forgings: annealing + car light; The bar is in the state of forging, surface polishing or car light; the strip is cold-rolled, solid solution soft, and descaled; the wire is solid-dissolved and acid-washed, or straight, solid solution Light state delivery.
