Product Details:
Payment & Shipping Terms:
|
| Product: | Stainless Steel Round Tube 304 | Standard: | ASTM A312 & A554 |
|---|---|---|---|
| Grade: | 304 316L | Surface: | Mill Or Bright |
| C: | Max 0.08% | Cr: | 18%-20% |
| Ni: | 8%-10% | Thickness: | 1mm ~ 80mm |
| OD: | 6mm ~ 1175mm | Length: | Max 18m |
| High Light: | seamless steel tube,polished stainless tube |
||

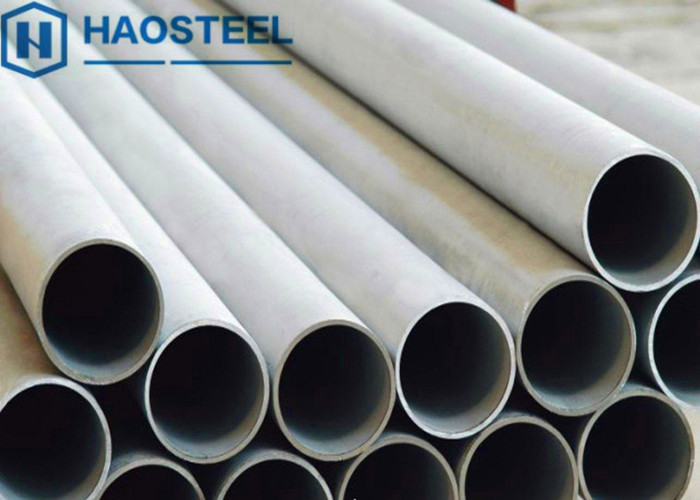

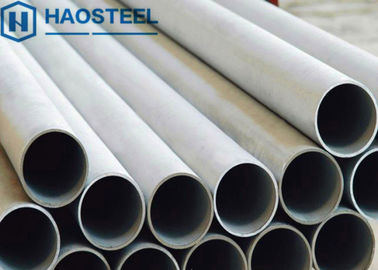

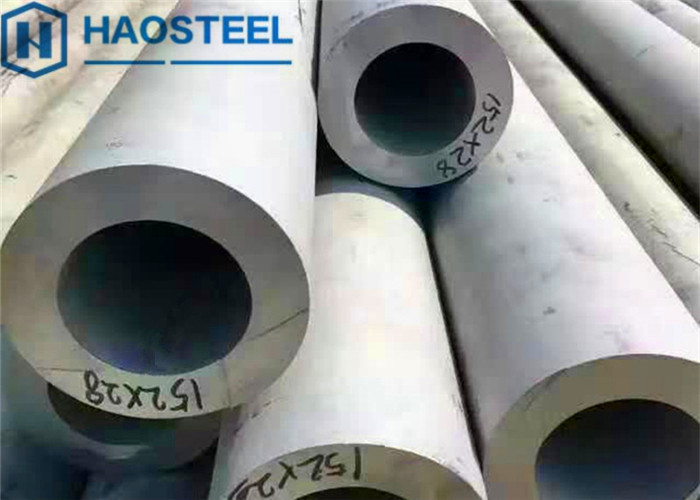

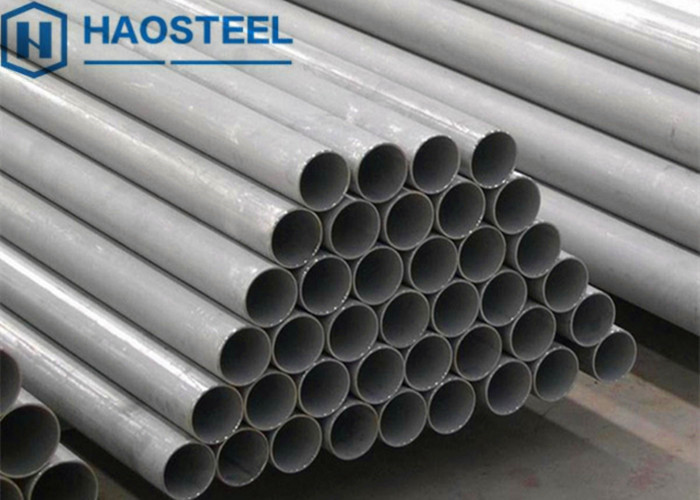

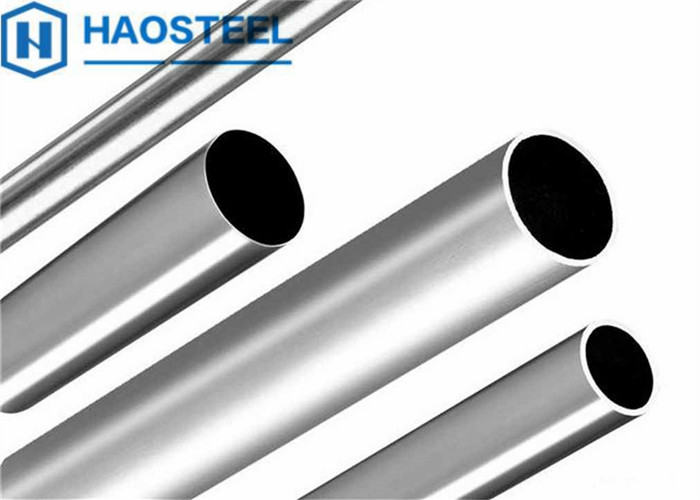

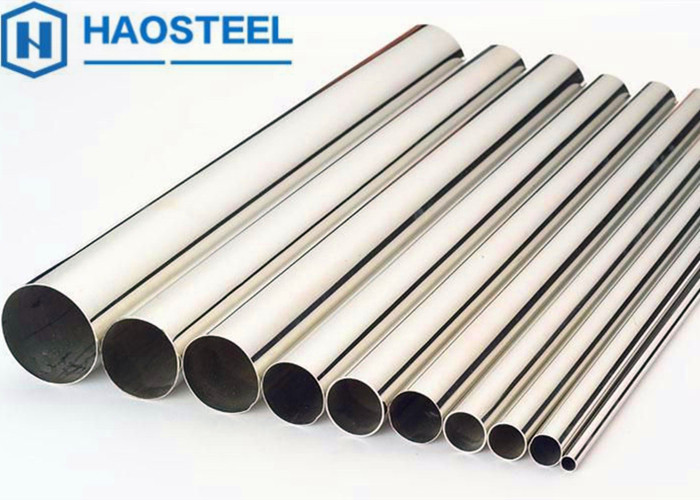

304 316L stainless steel round tube seamless or welded surface mill finish or bright finish
HAOSTEEL is one of the most professional manufacturer and supplier of ASTM A312 TP304 stainless steel Tube.
Description:
Stainless Steel Grade 304 is the standard 18/8 (18% chrome, 8% nickel) austenitic stainless steel. It is a non-magnetic alloy in the annealed condition but becomes magnetic as it is cold worked. It is the most commonly used of all stainless grades. TP304 can be easily welded and is the choice for many deep drawn, spun or formed parts due to its high ductility.
Chemical composition:
| C | Si | Mn | P | S | Cr | Ni | N |
| ≤ 0.03 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.03 | 18.00 - 20.00 | 8.00 - 10.50 | ≤ 0.10 |
Physical Properties:
Annealed:Ultimate Tensile Strength – 75 KSI min (515 MPA min)
Yield Strength (0.2% Offset) – 30 KSI min (205 MPA min)
Elongation – 40% min
Hardness – HRB92 max (210HV max)
Corrosion Resistance:
304 has excellent corrosion resistance and is used in many corrosive environments and atmospheres.
Material grade:
1. Austenitic stainless steel: 201, 202, 304, 304L, 304H, 316, 316L, 316Ti, 321.
1. Ferritic Stainless Steel: 409L, 430, 430F, 439.
The Range of Sizes:
1 Diameter: 5-4800mm
2 Thickness: 0.3-50mm
3 Length: 20mm-12meters.
Application:
Stainless steel pipe is a kind of economic cross section steel, is an important product of iron and steel industry, which can be widely used in decorative and industrial life, many people on the market for making stair handrail, protective Windows, railings, furniture, etc., common are two kinds of material for 201 and 304.
Stainless steel pipes are widely used in petroleum, chemical industry, medical, food, light industry, mechanical instruments and other industrial conveying pipes and mechanical structural parts.
According to use can be divided into oil well pipe (casing, tubing and drill pipe, etc.), line pipe, boiler pipe, mechanical structure, hydraulic prop, cylinder pipe, geological, chemical pipe (high pressure chemical fertilizer pipe, oil cracking pipe) and tube for ships, etc.
In addition, it is also widely used in the manufacture of mechanical parts and engineering structures in the light of bending and torsional strength and light weight.
