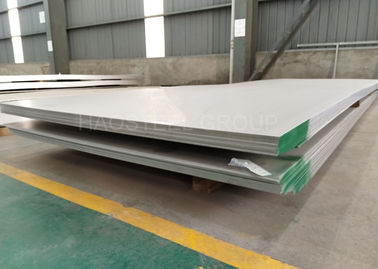

SUS304L stainless steel plate 304 hot rolled pickled solution annealed 1500x3000mm
Company Brief Introduction:
HAOSTEEL is one of the most professional manufactuer and supplier of stainless steel plate. Comapny culture: person oriented and customer centered. In the past 30 year, HAOSTEEL make good business relationship with more than 40 countries and regions, aiming to be the world’s most value partner.
Material Brief Introduction:
SUS304 is an universal stainless steel that is widely used to make equipment and parts which require good overall performance (corrosion resistance and formability). In order to maintain the corrosion resistance inherent in stainless steel, the steel must contain more than 18% chromium and more than 8% nickel.
SUS304 stainless steel plate has good corrosion resistance, heat resistance, low temperature strength and mechanical properties, good hot workability such as stamping and bending, no heat treatment hardening, and no magnetism. In normal conditions, the corrosion resistance of SUS304L stainless steel is similar to that of SUS304 stainless steel, but after welding or after stress relief, SUS304L stainless steel has excellent resistance to intergranular corrosion. In addition to SUS304L, other commonly used materials SUS316, SUS316L, SUS316Ti, SUS321, SUS310S, SUS347H, etc.
JIS G 4304 include stainless steel plate, stainless steel sheet, stainless steel coil, stainless steel strip.
1. Stainless steel plate is hot rolled thick type, thickness is ≥3mm, supply range is 3~200mm.
2. Stainless steel sheet is cold rolled thin type, thickness is ≤6mm. supply range is 0.01~6mm.
3. Stainless steel coil include both hot rolled and cold rolled, width is ≥600mm, supply range 0.6~2.0m.
4. Stainless steel strip include both hot rolled and cold rolled, width is <600mm, supply range 3~600mm.
Material Specification:
Sr.No | Standard Specification | Material Grade |
1 | JIS G 4304: 2012 | SUS304L |
2 | ASTM A240 / A240M - 14 | S30403 , 304L |
3 | EN 10088-2: 2014 | 1.4307 |
Chemical Composition:
Sr.No | Grade | C | Mn | P | S | Si | Cr | Ni | N |
1 | SUS304L | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.0-20.0 | 8.0-10.5 | - |
2 | 304L | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.0-20.0 | 8.0-10.5 | 0.10 |
3 | 1.4307 | 0.07 | 2.00 | 0.045 | 0.030 | 1.00 | 17.5-19.5 | 8.0-10.0 | 0.11 |
Mechanical properties:
Grade Unit | Tensile Strength | Yield Strength | Elongation | Hardness, Max | ||
MPa, min | Mpa, min | %, min | HB | HRB | HV | |
SUS304L | 520 | 205 | 40 | 187 | 90 | 200 |
304L | 515 | 205 | 40 | 201 | 92 | - |
1.4307 | 520-720 | 210 | 45 | - | - | - |
Application:
1. Tools, cutting tools, tableware, stamping products.
2. Mechanical manufacturing, solid parts, structural parts, shafts, bearings.
3. Construction, heavy oil burner parts, household appliance parts.
4. Petroleum and petrochemical, power industry, pressure vessels, boilers.
4. Transportation, tank trucks, metal products, machinery manufacturing.
5. Decoration, welded pipe, automobile exhaust pipe, modified rolling, cold rolled plate.
Export Packing:
1. Unit weight: 2-3tons per package or as client request.
2. Packing Type: strong wooden pallet and steel strip reinforcement, or as clients' request.
