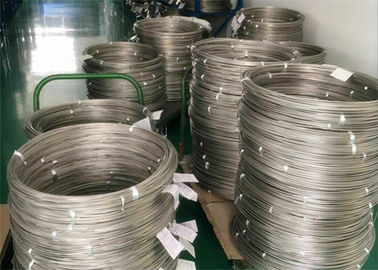

Copper Nickel Alloy Monel 400 Wire and Bar
Product Description
400 is copper nickel alloy,has good corrosion resistance. In salty water or seawater has excellent resistance to pitting corrosion, stress corrosion ability. Especially hydrofluoric acid resistance and resistance to the hydrochloric acid. Widely used in the chemical, oil, Marine industry.
It is widely used on many aspects,like valve and pump parts, electronic components, chemical processing equipment, gasoline and freshwater tanks, petroleum processing equipment, propeller shafts, marine fixtures and fasteners,boiler feedwater heaters and other heat exchangers.
Standard:
| Product | ASTM |
| Alloy Bar, Rod | B408 , B581 |
| Alloy Thick Plate, Thin Sheet, Coil Strip | A240 , A 480 , B409 , B582 , B906 |
| Alloy Seamless Tube and Pipe Fittings | B407, B622 , B829 |
| Alloy Welded Normal Bore Pipe ANSI | B514 , B619 , B775 |
| Alloy Welded Pipe | B515 , B626 , B751 |
| Alloy Welded Pipe Fittings | B366 |
| Alloy Forged or rolled pipe flange and forged | B462 , B 564 |
| Alloy Forged or rolled billet | B472 |
Monel 400 Chemical Composition
| CHEMICAL COMPOSITION % | ||||||
| C | Cu | Ni | Fe | Mn | Si | S |
| ≤0.30 | 28.0∼34.0 | ≥63.0 | ≤2.5 | ≤2.0 | ≤0.5 | ≤0.024 |
Monel 400 minimum mechanical properties in the room temperature
| Alloy state |
Tensile strength Rm N/mm² |
Yield strength R P0. 2N/mm² |
Elongation A 5 % |
| Monel400 | 480 | 170 | 35 |
Physical Properties
|
Grade |
Density |
Melting Point |
|
Monel 400 |
8.83g/cm3 |
1350 |
Monel 400 Standard
| Material | Sheet/plate | Round bar | Welded Pipe/Tube | Seamless Pipe/Tube | Forgings |
