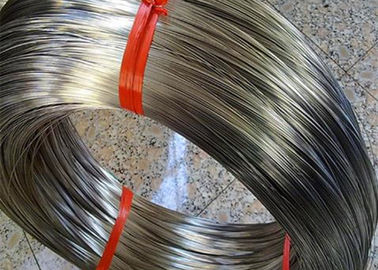

High Corrosion Resistance monel nickel copper alloy K-500 Wire rod
Product Description
Monel k-500 is a nickel-copper alloy that combines the excellent corrosion properties of the Monel 400 with increased strength and hardness.
Compared to the alloy 400, the Monel k-500 has about three times the yield strength and double the tensile strength, and the Monel K500 remains at 1200 degrees Fahrenheit, maintaining toughness and toughness to minus 400 degrees Fahrenheit.
The alloy k-500 also remains non-magnetic to -200 degrees Fahrenheit, and can be further strengthened by working at low temperatures before precipitation hardens.
Monel K500 has good mechanical properties, hardness, corrosion resistance and long-term stability.
It is widely used in pump shaft, oil well tool and instrument, blade and scraper, spring, valve trim, harness and Marine propeller shaft.
Standard:
| Product | ASTM |
| Alloy Bar, Rod | B408 , B581 |
| Alloy Thick Plate, Thin Sheet, Coil Strip | A240 , A 480 , B409 , B582 , B906 |
| Alloy Seamless Tube and Pipe Fittings | B407, B622 , B829 |
| Alloy Welded Normal Bore Pipe ANSI | B514 , B619 , B775 |
| Alloy Welded Pipe | B515 , B626 , B751 |
| Alloy Welded Pipe Fittings | B366 |
| Alloy Forged or rolled pipe flange and forged | B462 , B 564 |
| Alloy Forged or rolled billet | B472 |
Chemical Composition
| Grade | Ni% | Cu% | Al% | Ti% | Fe% | Mn% | S% | C% | Si% |
| Monel K-500 | Min 63 | 27.0-33.0 | 2.30-3.15 | 0.35-0.85 | Max 2.0 | Max 1.5 | Max 0.01 | Max 0.25 | Max 0.5 |
Physical Properties (20°C)
| Grade | Density | Melting Point | Electrical Resistivity | Mean Coefficient of Thermal Expansion | Thermal Conductivity | Specific Heat |
| Monel K-500 | 8.55g/cm3 | 1315°C-1350°C | 0.615 μΩ•m | 13.7(100°C) a/10-6°C-1 | 19.4(100°C) λ/(W/m•°C) | 418 J/kg•°C |
Mechanical Properties (20°C Min)
| Monel K-500 | Tensile Strength | Yield Strength RP0.2% | Elongation A5% |
| Annealed&Aged | Min. 896 MPa | Min. 586MPa | 30-20 |
Specifications
| Form | Standard |
| Monel K-500 | UNS N05500 |
| Bar | ASTM B865 |
| Wire | AMS4676 |
| Sheet/Plate | ASTM B865 |
| Forging | ASTM B564 |
| Weld Wire | ERNiCu-7 |
Packaging & Shipping
Packaging:Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
Shipping: We cooperation with many logistics company,We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.
Our Services
1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.
