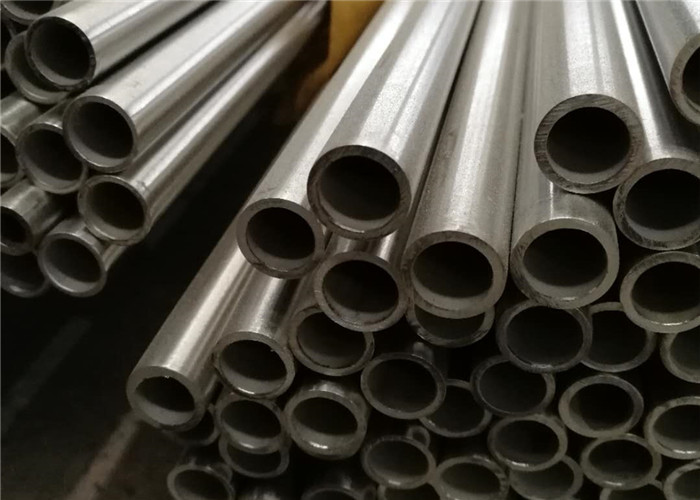

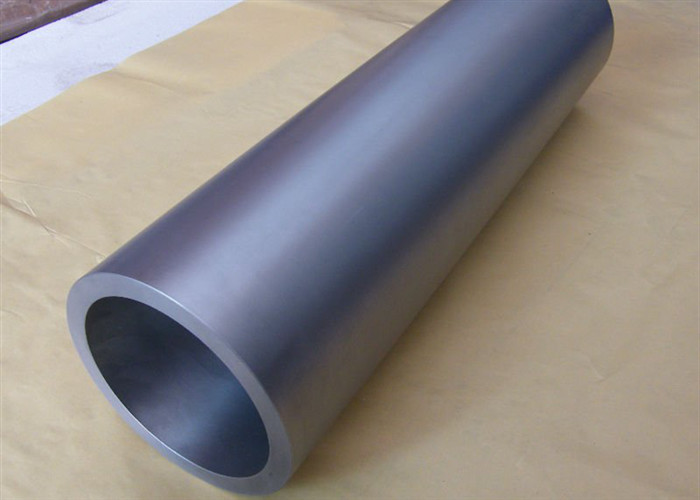

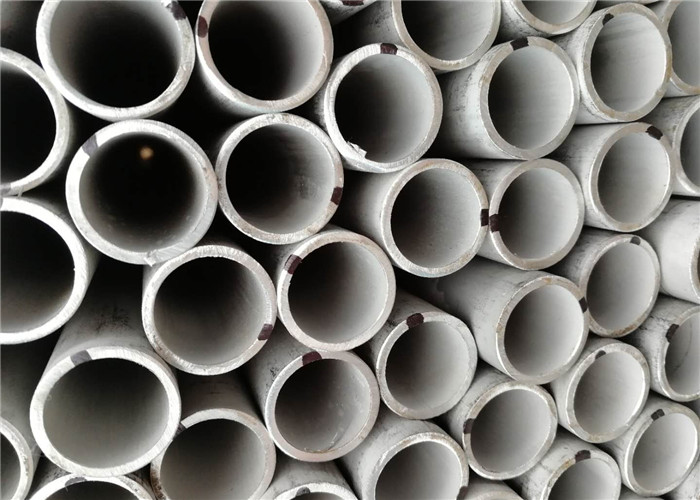

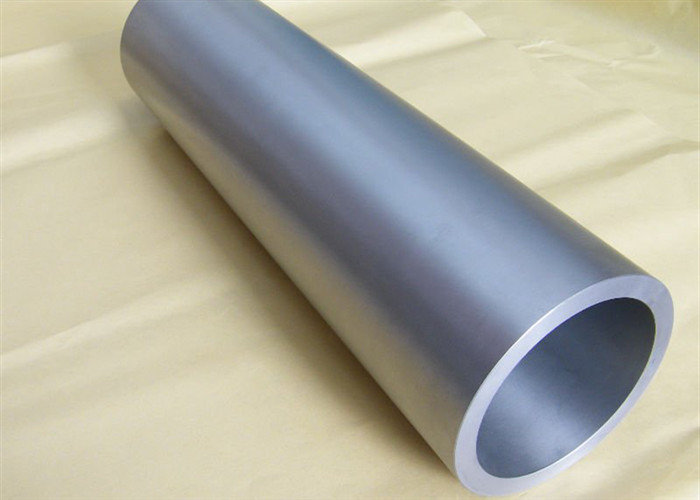

Nickel alloy 625 pipe tube for marine engineering oil & gas industry
Product Description:
Alloy 625 (UN N06625) is a kind of austenitic nickel-based super alloy, in a wide range of corrosive environment with excellent oxidation resistance, corrosion resistance, crack resistance, anti-corrosion of chromium and molybdenum content on the corrosion of chlorine ion has excellent corrosion resistance, the alloy was developed for high temperature strength, its high alloy components to a wide range of oxidation and oxidation environment provides a high level of corrosion resistance to chloride stress corrosion cracking resistance.
Includes the jet engine environment and many other seawater applications, aviation components, chemical treatment equipment, nuclear water reaction components and chemical process applications.
The alloy 625 has excellent strength and toughness. The strength of the alloy 625 comes from the solid solution strengthening effect of molybdenum and niobium on nickel-chromium matrix.
From low temperature to 2000 F (1093 C).
The alloy 625 also has special fatigue resistance.
High temperature resistance, used in arc and flame spray systems, produces a dense, cohesive coating resistant to high temperature oxidation and corrosion. These elements also contribute to corrosion resistance of the alloy.
Standard:
| Product | ASTM |
| Alloy Bar, Rod | B408 , B581 |
| Alloy Thick Plate, Thin Sheet, Coil Strip | A240 , A 480 , B409 , B582 , B906 |
| Alloy Seamless Tube and Pipe Fittings | B407, B622 , B829 |
| Alloy Welded Normal Bore Pipe ANSI | B514 , B619 , B775 |
| Alloy Welded Pipe | B515 , B626 , B751 |
| Alloy Welded Pipe Fittings | B366 |
| Alloy Forged or rolled pipe flange and forged | B462 , B 564 |
| Alloy Forged or rolled billet | B472 |
Inconel 625 Chemical composition:
| Alloy | % | Ni | Cr | Mo | Nb+N | Fe | Al | Ti | C | Mn | Si | Cu | P | S |
| 625 | Min. | 58 | 20 | 8 | 3.15 | |||||||||
| Max. | 23 | 10 | 4.15 | 5 | 0.4 | 0.4 | 0.1 | 0.5 | 0.5 | 0.5 | 0.015 | 0.015 |
Inconel 625 Pysical properties:
| Density | 8.4 g/cm³ |
| Melting point | 1290-1350°C |
Inconel 625 Alloy minimummechanical properties in the room temperature:
|
Alloy State |
Tensile strength Rm N/mm² |
Yield strength R P0. 2N/mm² |
Elongation A 5 % |
Brinell hardness HB |
| 625 | 760 | 345 | 30 | ≤220 |
Inconel 625 Typical application field as below:
1 .The Organic chemical process parts contains chloride, especially in the use of acid chloride catalyst.
2. The digester and bleacherin the use of paper pulp and paper making industry.
3. Absorption tower, re-heater,gas import board, fan, blender, fair water fin, flue and so on for using in flue gas desulfurization system.
4. The equipment and parts in the use of acidic gas environments.
5. Acetic acid and anhydride reaction generator
6. Sulfur acid cooling
