Cold Drawn Soft Stainless Steel Coil Wire , 316 304L Stainless Steel Welding Wire

Negotiation
MOQ
Negotiation
Price
Cold Drawn Soft Stainless Steel Coil Wire , 316 304L Stainless Steel Welding Wire
Features Gallery Product Description Request A Quote
Features
Specifications
Product: 316 316L Stainless Steel Wire
Standard: GB , JIS, ASTM , AISI , DIN
Grade: 201,202,301,303,304,304L,305,316,316L,321,410,416,420,430,1.4301, 1.4306, 1.4845, 1.4401, 1.4371, 1.4597,1.4541, Etc
Surface: Uniform And Beautiful, With Linear Stability.bright, Pickled, Black
Craft: Cold Drawn And Annealed
Application: Welding Wire, Spring Wire, Binding Wire
Sectional Dimension: 0.05mm-16mm
Packing: Packing Is Good And The Price Is Favorable
High Light:

stainless steel welding wire

,

stainless steel coil wire

Basic Infomation
Place of Origin: CHINA
Brand Name: HAOSTEEL
Certification: ISO9001,CE,BV,SGS
Model Number: 201, 301, 302, 303, 304, 304L, 316, 316L, 321, 309S, 309H, 310, 310S, 2205, 410, 431, 430 ,etc.
Payment & Shipping Terms
Packaging Details: Woven bags and plastic strips inside packing, wooden / iron pallet and steel strips outside packing.
Delivery Time: 5-10 working days after order confirmed and receive deposit
Payment Terms: L/C, T/T
Supply Ability: 1000tons per month
Product Description

ASTM A580 hot sale 304 / 304L / 316 / 316L stainless steel soft wire in coils




Description:
Stainless steel wire, also called stainless steel wire, wire rod, pan yuan, but unlike stainless steel wire rope. Main wire spring wire and screws line two, as the name implies: the line is mainly used to do screw, screw and spring wire used for spring or other requirements of flexible hardware products. Other light line, for example, hydrogen annealing line, electrolytic line, axle pin line. The tensile strength of 1500-2000. The hardness of spring line has the following kinds: the soft hard | | a quarter and a half hard hard | | 3/4 full hard | hard. Can be used in chemical, petroleum, food, energy, electric power, aerospace, environmental protection, boiler heat exchanger, etc.


316 stainless steel wire can also be called as stainless steel wire, using stainless steel as raw material for the production of various different specifications and models of silk products,316 stainless steel wire drawing under the action of drawing force to wire rod or wire blank from the die hole of drawing die, to produce small sections of steel wire or non-ferrous metal wire metal plastic processing process.
Various metals and alloys of different section shape and size of the metal silk can be produced by drawing.
Drawn out of the silk, accurate size, smooth surface, and the use of drawing equipment and mold simple, easy to manufacture.



316 stainless steel wire has good oxidation resistance, heat resistance and corrosion resistance. 316 stainless steel wire has better corrosion resistance than 304 stainless steel.
And 316 stainless steel wire is also resistant to ocean and corrosive industrial atmosphere erosion.


Stainless Steel Wire Chemical Composition

AISI C Max % Mn Max % P Max% S Max% Si Max% Cr% Ni% Mo%
316 0.06 2 0.045 0.03 1 16.00-18.00 10.00-14.00 2.00-3.00
316L 0.03 2 0.045 0.03 1 16.00-18.00 12.00-15.00 2.00-3.00
316Ti 0.08 2 0.045 0.03 0.75 16.00-18.00 10.00-14.00 2.00-3.00



Mechanical Properties

Mechanical Properties of Hydrogen Annealed Wire
Diameter(mm) Tensile Strength(MPa) Elongation(%)
0.05~0.10 690~ 1030 15
0.10~0.30 640~ 980 20
0.30~0.60 590~ 930 20
0.60~1.00 540~ ~ 880 25
1. 00~3. 00 490~830 25
3.00~6.00 490~830 30
6.00~ 14.00 490~ 790 30





Mechanical Properties of Bright Polished Shiny Wire
Diameter(mm) Tensile Strength(MPa)
0.05~1.00 1180-1520
1.00~3.00 1130~ 1470
3.00~6.00 1080~ 1420





Mechanical Properties of Spring Wire
Diameter(mm) Tensile Strength(MPa)
0. 10~0.40 1960~ 2205
0.40~0.70 1815~ 2060
0.70~1.00 1765~2010
1. 00~ 1. 40 1665~1910
1.40~2. 00 1570~ 1815
2. 00~2.60 1470~1715
2.60~4.00 1375~ 1620
4.00~6.00 1275~1520



Specifications



Wire Type

Stainless Steel Spring Wire,EPQ Wire(Kitchen Wire),CHQ Wire(Cold Heading Wire),Stainless Flat Spring Wire,Stainless Steel Nail Wire,Stainless Steel Weaving Wire,Stainless Steel Straight Wire ,stainless steel soft wire,stainless steel fine wire ,stainless steel electrode wire,stainless electrolytic wire,stainless steel welding wire,etc;



Material

ASTM: 201, 202, 204Cu, 301, 302, 303, 304, 304Cu, 304HC, 304L, 304H, 310, 310S, 312, 314, 316, 316L, 316LN, 316Ti, 316LCu, 321, 410, 420, 430, 430L,etc
  DIN/EN:1.4301, 1.4306, 1.4307, 1.4310, 1.4401, 1.4404, 1.4567, 1.4841, 1.4842, 1.4541, 1.4845, 1.4570, 1.4571, 1.4578, 1.4597, 1.4362, 1.4370, 1.4016,etc
Size 0.016mm-16mm
Special specifications can also be produced according customer's requests
Surface Bright, matt ,electrolysis bright ,cloudy ,plain ,black, hot rolled hydrogen , soft ,etc;
Tensile strength 630N/mm2-1800N/mm2 or custom according your requests



Products Show

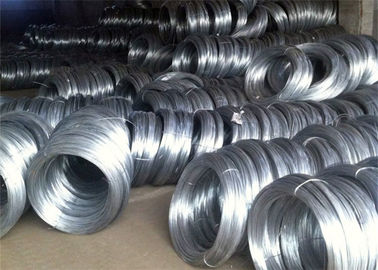

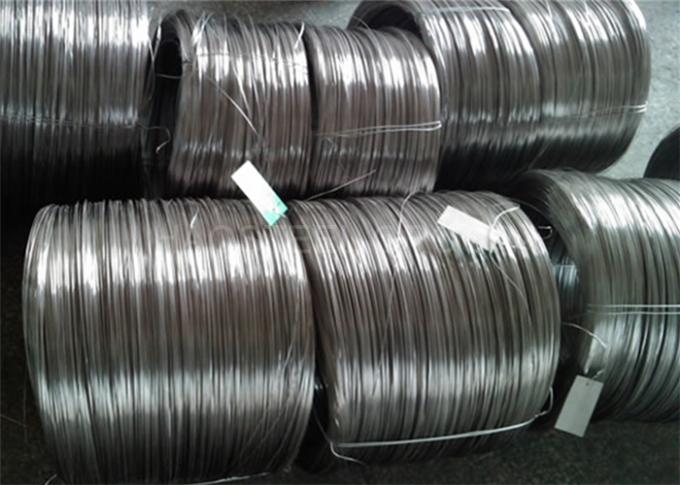

Cold Drawn Soft Stainless Steel Coil Wire , 316 304L Stainless Steel Welding Wire 0 Cold Drawn Soft Stainless Steel Coil Wire , 316 304L Stainless Steel Welding Wire 1


Product Application
1). Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire,
2). Conveyors, jewelry, springs, brush welding, electrical, wire line, craft , bicycle fittings
3). Kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets
4). Food and medical machinery accessions
Widely used in petrochemical, aerospace, textile printing, electronic communications, environmental protection, health care and daily life.,etc



Our advantage
Our range of Wire made of Stainless Steel are not only known for their variety but are also known for their good quality, long life and very reasonable prices. Quality and service is our first priority, we effectively use technically advanced machinery equipment and the expertise of our work to deliver our stainless steel wired products
