High quality oil and gas round square pipeline seamless carbon steel pipe
Product Description
Carbon steel pipe can be divided into seamless steel pipe, straight steel pipe, spiral steel pipe, high frequency welded steel pipe and so on.Carbon steel seamless steel pipe is a kind of long steel.
The pipe has a hollow section and is used in a large number of pipelines for fluid transportation, such as those for oil, natural gas, gas, water and some solid materials.
Seamless steel pipe for structure and mechanical structure
Standard: GB/T8162-2008
Grade:10#,20#,35#,45#,16Mn,12Crmo,15Crmo,12Cr1Mov
Size: OD:17.1-1200mm
Chemical composition in %
| Grade | C . | Si | Mn . | P ,S | Cu | Ni | Mo | Cr |
| 10 | 0.07-0.14 | 0.17-0.37 | 0.35-0.65 | Max.0.035 | Max.0.25 | Max.0.25 | / | Max.0.15 |
| 20 | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | Max.0.035 | Max.0.025 | Max.0.25 | / | Max.0.25 |
| 35 | 0.32-0.40 | 0.17-0.37 | 0.50-0.80 | Max.0.035 | Max.0.25 | Max.0.25 | Max.0.25 | |
| 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | Max.0.035 | Max.0.25 | Max.0.25 | Max.0.25 | |
| 16Mn | 0.12-0.20 | 0.20-0.55 | 1.20-1.60 | Max.0.035 | Max.0.25 | Max.0.25 | Max.0.25 | |
| 12Crmo | 0.08-0.15 | 0.17-0.37 | 0.40-0.70 | Max.0.035 | Max.0.25 | Max.0.30 | 0.40-0.55 | 0.40-0.70 |
| 15Crmo | 0.12-0.18 | 0.17-0.37 | 0.40-0.70 | Max.0.035 | Max.0.25 | Max.0.30 | 0.40-0.55 | 0.80-1.10 |
| 12Cr1Mov | 0.08-0.15 | 0.17-0.37 | 0.40-0.70 | Max.0.035 | Max.0.25 | Max.0.30 | 0.25-0.35 | 0.90-1.20 |
Seamless pipe production procedure and methods:
1. Hot rolled seamless steel pipe
using hot rolled steel pipe billet to make heating and piercing, elongating, sizing and stranghtening, cooling, finally hollow bars finished, this is the type most commonly used. Because it is hot rolled, so cost is lowest, but it is suit for large quantity, for small quantity, have to make cold drawn or round bar piercing. size: outer diameter 15mm- 499mm, wall thickness 2mm- 80mm
2. Cold drawn seamless steel pipe
for outer diameter not over than 63.5mm, small size hollow bar, when demanded quantity is under 5 tons, usually make cold drawn hollow bar, using larger size hot rolled hollow bar to draw to the size demanded.
some size can be finished only by one time drawing, but some other sizes might need twice or three times to finish drawing, it takes time, so the cost is higher.
cold drawn size outer diameter 16mm- 63.5mm
3. Hot- expanding seamless steel piper
For hollow bar sizes are special, not common sizes, have to use smaller thick wall hollow bar to hot expand to be larger size hollow bar, but the technical property for hot-expanded hollow bar will be lower than the original hollow bar. Size: outer diameter over 356mm.

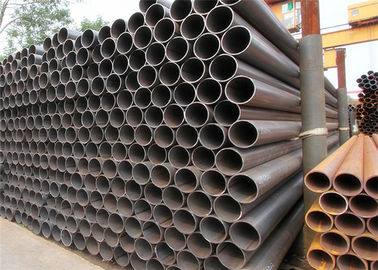

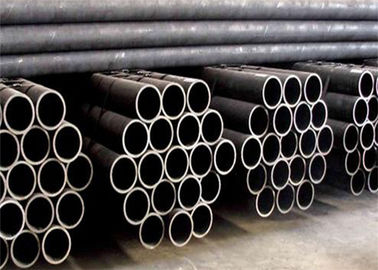

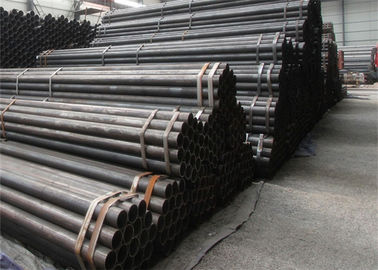

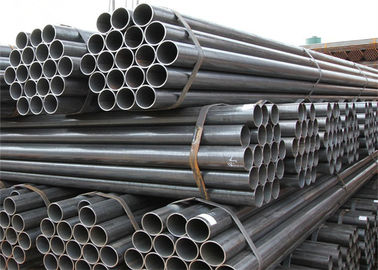

Product Show:
Applications:
Rolling seamless carbon steel pipe is divided into hot rolling and cold rolling (drawing) pipe.
Hot rolled carbon steel pipe is divided into general steel pipe, low and medium pressure boiler pipe, high pressure boiler pipe, alloy pipe, stainless steel pipe, petroleum cracking pipe, geological pipe and other steel pipe, etc.
Cold rolled (dial) carbon steel pipes include general steel pipe, low-medium pressure boiler steel pipe, high-pressure boiler steel pipe, alloy steel pipe, stainless steel pipe, petroleum cracking pipe, and other steel pipe, including carbon thin-walled steel pipe, alloy thin-walled steel pipe, stainless steel pipe, and special-shaped steel pipe.
Oil pipe mainly used for transport oil and gas,and also widely used as transmission fluid pipe,
such as transport oil, natural gas, coal gas, water and some solid pipeline etc.
