Product Details:
Payment & Shipping Terms:
|
| Product: | 304 Stainless Welded Steel Pipe | Standard: | ASTM, AISI, GB, JIS |
|---|---|---|---|
| Grade: | 200/300/400/900 Series | Surface: | Pickled And Bright Polished Finish |
| Technique: | Cold Rolled Hot Rolled | Type: | Welded Seamless |
| Shape: | Round.square.Rectangle | Thickness: | 1mm ~ 80mm |
| OD: | 6mm ~ 1175mm | Length: | Customer's Requirement |
| High Light: | seamless steel tube,polished stainless tube |
||
Manufacturer Hot product cheap 304 stainless welded seamless steel pipe tube
HAOSTEEL is one of the most professional manufacturer and supplier of stainless steel Tube.Stainless steel tube can be divided into seamless tube and welded tube according to production mode. Seamless tube can be divided into hot rolled tube, cold rolled tube, cold drawn pipe and extruded tube.The welded pipe is divided into straight welded pipe and spiral welded tube.
Description:
Welded stainless steel pipe referred to as stainless steel welded pipe, commonly used steel or steel band after the unit and mold crimp forming of the steel pipe.Welding steel pipe production process is simple, high production efficiency, variety and specification, equipment investment is less, according to the welding form divided into straight welded pipe and spiral welded pipe.It can be divided into general welded pipe, heat exchanger pipe, condenser pipe, galvanized welded pipe, oxygen-blown welded pipe, wire bushing, metric welded pipe, roller pipe, deep well pump pipe, automobile pipe, transformer pipe, welded thin-wall pipe, welded special-shaped pipe and spiral welded pipe
Mechanical properties of 304 stainless steel
| Name | 304 Stainless Steel Tube |
| Grade | 304 304L 316 316L 309s 310s 321 430 410 904L |
| Brand | TISCO ,BAOSTEEL,POSCO,JISCO,LISCO |
| Out-Diameter | 10-1175mm or as your requirements |
| Thickness | 0.3-50mmor as your requirements |
| Length | 1000-18000mm as your needs |

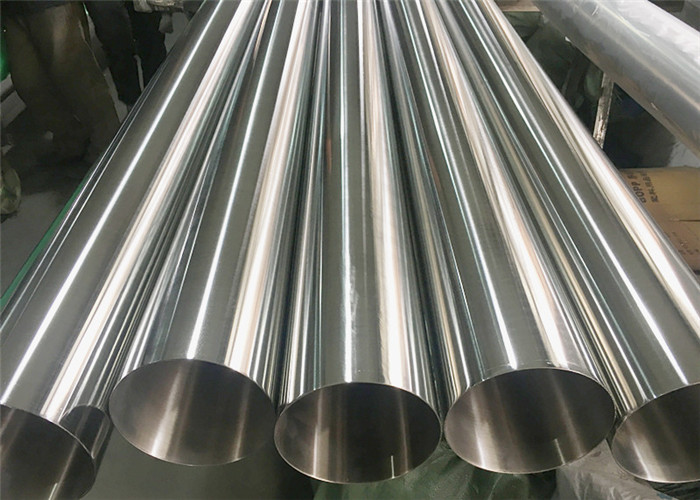

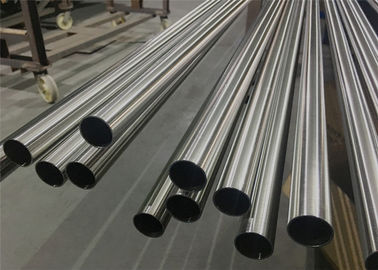

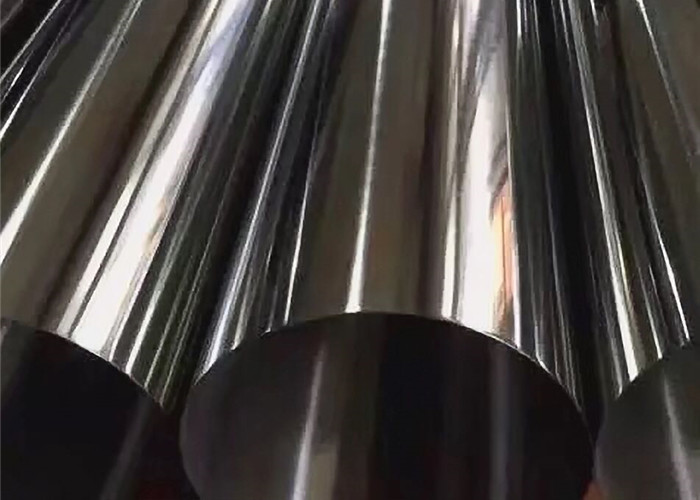

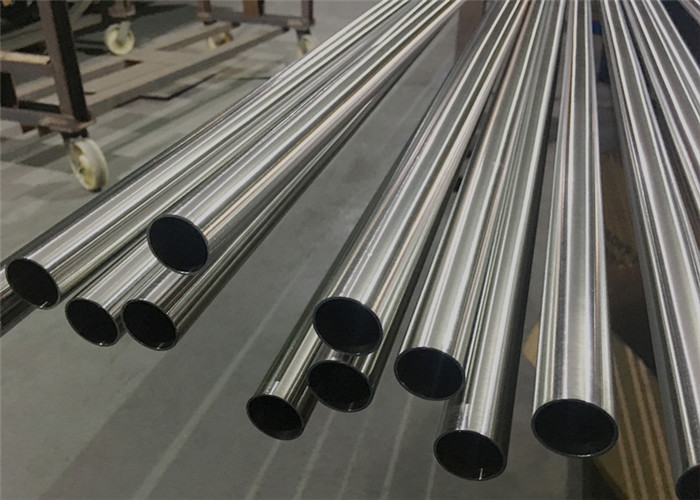

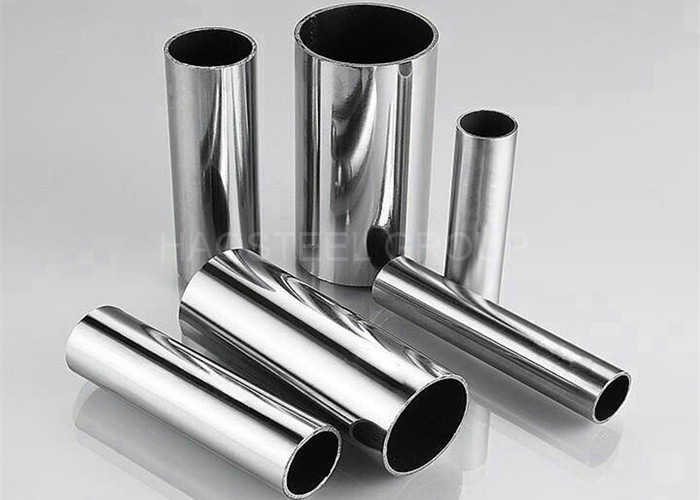

Product Show
Chemical Composition about stainless steel Tube
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | ≤0.03 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤0.03 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.03 | ≤0.60 | 16.0-18.0 | - |
Stainless steels of various kinds are used in thousands of applications.
304 stainless steel welded pipe has high precision, uniform wall thickness, high inner surface brightness (the surface brightness of steel pipe determined by the surface grade of steel plate), and it can be arbitrarily calibrated.Therefore, it shows its economy and beauty in the application of high-precision, medium-low pressure fluid.
Stainless steel welded steel pipe for mechanical structure is mainly used for decoration of machinery, automobile, bicycle, furniture, hotel and restaurant and other mechanical parts and structural parts.Its representative materials are 0Cr13, 1Cr17, 00Cr19Ni11, 1Cr18Ni9, 0Cr18Ni11Nb, etc.
Stainless steel welded steel pipe used for fluid transportation is mainly used for conveying low pressure corrosive medium.The representative materials are 06Cr19Ni10, 022Cr19Ni10, 06Cr19Ni110Ti, 00Cr17, 0Cr18Ni11Nb, 06Cr17Ni12Mo2, etc.
stainless steel welded pipe is widely used in food, dairy product, drink, brewage, pharmacy and biology project etc. Its customer group are vast. Good user basis have been set up.
