PVC Coated Stainless Steel Tubing Coil ASTM A269 TP304 316L with BA Surface

PVC Coated Stainless Steel Tubing Coil ASTM A269 TP304 316L with BA Surface
PVC Coated Stainless Steel Tubing Coil ASTM A269 TP304 316L with BA Surface PVC Coated Stainless Steel Tubing Coil ASTM A269 TP304 316L with BA Surface PVC Coated Stainless Steel Tubing Coil ASTM A269 TP304 316L with BA Surface PVC Coated Stainless Steel Tubing Coil ASTM A269 TP304 316L with BA Surface

Large Image :  PVC Coated Stainless Steel Tubing Coil ASTM A269 TP304 316L with BA Surface

Product Details:
Place of Origin: CHINA
Brand Name: HAOSTEEL
Certification: ISO9001
Model Number: HSCT316L
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: In coil or in wooden spool, wooden pallet or box packing.
Delivery Time: 5-10 working days after order confirmed and receive deposit
Supply Ability: 5000tons per month
Detailed Product Description
Product: PVC Coated Stainless Steel Coil Tubing ASTM A269 TP304 316L BA Surface Standard: ASTM, AISI, GB, JIS
Grade: 304 316L Surface: Bright Polished Finish
Special Pipe: Welded Pipe, Seamless Shape: Round
Thickness: 0.2mm ~ 3mm OD: 3mm ~ 25.4mm
Length: Customer's Requirement Application: Industry, Construction, Oil, Medicine, Food
High Light:

polished stainless tube

,

industrial steel pipe

PVC coated stainless steel coil tubing ASTM A269 TP304 316L BA Surface




Description:

HAOSTEEL is one of the most professional manufacturer and supplier of stainless steel Tube.Stainless steel tube can be divided into seamless tube and welded tube according to production mode. Seamless tube can be divided into hot rolled tube, cold rolled tube, cold drawn pipe and extruded tube.The welded pipe is divided into straight welded pipe and spiral welded tube.



Stainless steel PVC coated coil tube, stainless steel EP tube

Standard: ASTM (ASME) SA /312/A213/A269.
Steel tube material: TP304, TP321, TP316L, TP304L, Monel400, Inconel600, incoloy825, incoloy625, carbon steel, etc.
Steel tube wall thickness: 0.2mm - 3mm
Steel tube outer diameter: 1.0mm—32mm

Tolerance range: outer diameter ± 0.1mm, wall thickness ± 0.1mm
Steel tube length: 100M-6000M

Length remarks: According to different specifications, the length is 1000m normally, and there is no solder joint in the whole tube.
Pressure resistance: 50MPA-120MPA
Plastic layer material: PVC, F40, F46, etc
Process characteristics: Electrochemical polishing is performed on the basis of BA grade, and the inner wall roughness is increased by half on the basis of BA tube.



Applications: biopharmaceuticals, electronic cleanrooms, high purity gases, solar photovoltaics, polysilicon, etc.

Packing: Shockproof and dustproof packaging, also available in wooden or wooden boxes.

Advantages: stainless steel capillary coil is resistant to high temperature steam, anti-impact corrosion; anti-fouling, not easy to stain, anti-oxidation corrosion, long service life, reduced maintenance time, cost saving: and good processability, safe and reliable, tube The wall is uniform and so on.

Applications: Stainless steel capillary coils are widely used in oil drilling, complete equipment (line and cable), chemical, pharmaceutical, food, machinery, hardware, boiler gas, plumbing fittings, shipbuilding and other industries, heat exchangers and cold processing chemical industry. , gas pipelines, etc.

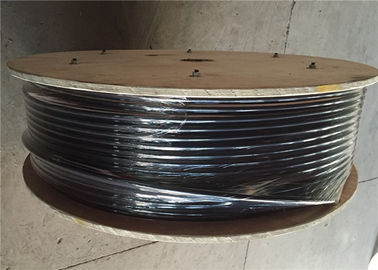

Product show

  PVC Coated Stainless Steel Tubing Coil ASTM A269 TP304 316L with BA Surface 0PVC Coated Stainless Steel Tubing Coil ASTM A269 TP304 316L with BA Surface 1



Chemical Composition about stainless steel Tube

Grade C Si Mn P S Ni Cr Mo
201 ≤0.15 ≤0.75 5.5-7.5 ≤0.06 ≤0.03 3.5-5.5 16.0-18.0 -
202 ≤0.15 ≤1.0 7.5-10.0 ≤0.06 ≤0.03 4.-6.0 17.0-19.0 -
301 ≤0.15 ≤1.0 ≤2.0 ≤0.045 ≤0.03 6.0-8.0 16.0-18.0 -
302 ≤0.15 ≤1.0 ≤2.0 ≤0.035 ≤0.03 8.0-10.0 17.0-19.0 -
304 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤0.03 19.0-22.0 24.0-26.0 -
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0.03 ≤1.0 ≤2.0 ≤0.045 ≤0.03 12.0-15.0 16.0-18.0 2.0-3.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.035 ≤0.03 9.0-13.0 17.0-19.0 -
630 ≤0.07 ≤1.0 ≤1.0 ≤0.035 ≤0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 - 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤0.03 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤0.03 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.03 ≤0.60 16.0-18.0 -
