High quality rope bright 304HC 304Cu 304L 304 stainless steel screw wire
Description
Stainless steel wire, also called stainless steel wire, wire rod, pan yuan, but unlike stainless steel wire rope. Main wire spring wire and screws line two, as the name implies: the line is mainly used to do screw, screw and spring wire used for spring or other requirements of flexible hardware products. Other light line, for example, hydrogen annealing line, electrolytic line, axle pin line. The tensile strength of 1500-2000. The hardness of spring line has the following kinds: the soft hard | | a quarter and a half hard hard | | 3/4 full hard | hard. Can be used in chemical, petroleum, food, energy, electric power, aerospace, environmental protection, boiler heat exchanger, etc.
SUS304H austenitic stainless steel, TP304H stainless steel, has good bending, welding process performance, corrosion resistance, high durable strength and tissue stability, and excellent cold deformation capacity.Using temperature up to 650 ℃, oxidation temperature up to 850 ℃.SUS304H can meet the requirements of ultra-supercritical parameters with high temperature strength, oxidation resistance, long-term service, suitable for superheater and reheater tubes, economic austenitic stainless steel materials.
It is mainly used for heat exchanger in heavy boiler superheater, steam pipe and petrochemical heat exchanger.
Stainless Steel Wire Chemical Composition
| AISI | Chemical Composition(%) | |||||||
| Grade | ||||||||
| C | Si | Mn | P | S | Ni | Cr | Mo | |
| 304 | =<0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304H | >0.08 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | =<0.030 | =<1.00 | =<2.00 | =<0.045 | =<0.030 | 9.00~13.50 | 18.00~20.00 | - |
Specifications
|
Wire Type |
Stainless Steel Spring Wire,EPQ Wire(Kitchen Wire),CHQ Wire(Cold Heading Wire),Stainless Flat Spring Wire,Stainless Steel Nail Wire,Stainless Steel Weaving Wire,Stainless Steel Straight Wire ,stainless steel soft wire,stainless steel fine wire ,stainless steel electrode wire,stainless electrolytic wire,stainless steel welding wire,etc; |
|
Material |
ASTM: 201, 202, 204Cu, 301, 302, 303, 304, 304Cu, 304HC, 304L, 304H, 310, 310S, 312, 314, 316, 316L, 316LN, 316Ti, 316LCu, 321, 410, 420, 430, 430L,etc |
| DIN/EN:1.4301, 1.4306, 1.4307, 1.4310, 1.4401, 1.4404, 1.4567, 1.4841, 1.4842, 1.4541, 1.4845, 1.4570, 1.4571, 1.4578, 1.4597, 1.4362, 1.4370, 1.4016,etc | |
| Size | 0.016mm-16mm Special specifications can also be produced according customer's requests |
| Surface | Bright, matt ,electrolysis bright ,cloudy ,plain ,black, hot rolled hydrogen , soft ,etc; |
| Tensile strength | 630N/mm2-1800N/mm2 or custom according your requests |

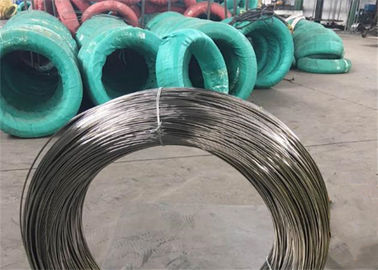

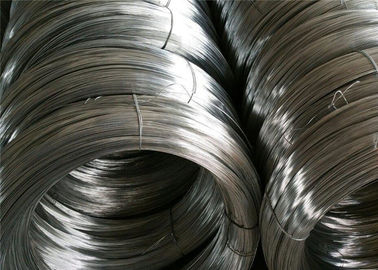

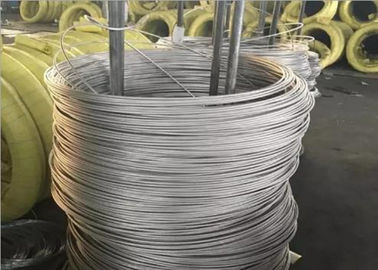

Products Show
Product Application
1). Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire,
2). Conveyors, jewelry, springs, brush welding, electrical, wire line, craft , bicycle fittings
3). Kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets
4). Food and medical machinery accessions
Widely used in petrochemical, aerospace, textile printing, electronic communications, environmental protection, health care and daily life.,etc
Our advantage
Our range of Wire made of Stainless Steel are not only known for their variety but are also known for their good quality, long life and very reasonable prices. Quality and service is our first priority, we effectively use technically advanced machinery equipment and the expertise of our work to deliver our stainless steel wired products
