304 316 316L spring stainless steel wire / flexible steel wire
Description:
Stainless steel wire, also called stainless steel wire, wire rod, pan yuan, but unlike stainless steel wire rope. Main wire spring wire and screws line two, as the name implies: the line is mainly used to do screw, screw and spring wire used for spring or other requirements of flexible hardware products. Other light line, for example, hydrogen annealing line, electrolytic line, axle pin line. The tensile strength of 1500-2000. The hardness of spring line has the following kinds: the soft hard, 1/4H, 1/2H, 3/4H, FH. Can be used in chemical, petroleum, food, energy, electric power, aerospace, environmental protection, boiler heat exchanger, etc.
Stainless steel spring wire refers to the steel specially used to make springs and elastic elements due to the elasticity under quenching and tempering.Spring steel shall have excellent comprehensive performance, such as mechanical properties (especially elastic limit, strength limit and flexural strength ratio), anti-elastic properties (i.e. anti-elastic decay properties, also known as anti-relaxation properties), fatigue properties, hardenability, physical and chemical properties (heat resistance, low resistance, oxidation resistance, corrosion resistance, etc.).To meet the above performance requirements, spring steel has excellent metallurgical quality (high purity and uniformity), good surface quality (strict control of surface defects and decarburization), accurate shape and size.Stainless steel spring wire is applied to spray spring, battery welding, compression spring, tension spring, torsion spring, high strength spring, high fatigue spring, medical spring, non-magnetic spring, knitting spring.
Stainless Steel Wire Chemical Composition:
AISI Material | Chemical Composition | ||||||||
Compsition | C Max% |
Si Max% |
Mn Max% | P Max% | S Max% | Ni% | Cr% | Mo% | Cu% |
304 | 0.08 | 1.0 | 2.0 | 0.035 | 0.03 | 8-10 | 17-19 | - | - |
304L | 0.03 | 1.0 | 2.0 | 0.04 | 0.03 | 9-13 | 18-20 | - | - |
304HC | 0.06 | 1.0 | 1.2-1.8 | 0.035 | 0.03 | 8-11 | 17-19 | - | 2.0-3.0 |
316 | 0.08 | 1.0 | 2.0 | 0.04 | 0.03 | 10-14 | 16-18 | 2.0-3.0 | - |
316L | 0.03 | 1.0 | 2.0 | 0.04 | 0.03 | 12-15 | 16-18 | 2.0-3.0 | - |
310S | 0.08 | 2.0 | 2.0 | 0.04 | 0.03 | 19-22 | 24-26 | - | - |
321 | 0.18 | 2.0 | 2.0 | 0.045 | 0.03 | 9-13 | 17-19 | - | |
301 | 0.15 | 2.0 | 2.0 | 0.04 | 0.03 | >7 | 16-18 | - | - |
302 | 0.15 | 2.0 | 2.0 | 0.04 | 0.03 | >8 | 17-19 | - | - |
Specifications
Wire Type |
Stainless Steel Spring Wire,EPQ Wire(Kitchen Wire),CHQ Wire(Cold Heading Wire),Stainless Flat Spring Wire,Stainless Steel Nail Wire,Stainless Steel Weaving Wire,Stainless Steel Straight Wire ,stainless steel soft wire,stainless steel fine wire ,stainless steel electrode wire,stainless electrolytic wire,stainless steel welding wire,etc; |
Material |
ASTM: 201, 202, 204Cu, 301, 302, 303, 304, 304Cu, 304HC, 304L, 304H, 310, 310S, 312, 314, 316, 316L, 316LN, 316Ti, 316LCu, 321, 410, 420, 430, 430L,etc |
DIN/EN:1.4301, 1.4306, 1.4307, 1.4310, 1.4401, 1.4404, 1.4567, 1.4841, 1.4842, 1.4541, 1.4845, 1.4570, 1.4571, 1.4578, 1.4597, 1.4362, 1.4370, 1.4016,etc | |
Size | 0.016mm-16mm Special specifications can also be produced according customer's requests |
Surface | Bright, matt ,electrolysis bright ,cloudy ,plain ,black, hot rolled hydrogen , soft ,etc; |
T. Strength | 630N/mm2-1800N/mm2 or custom according your requests |

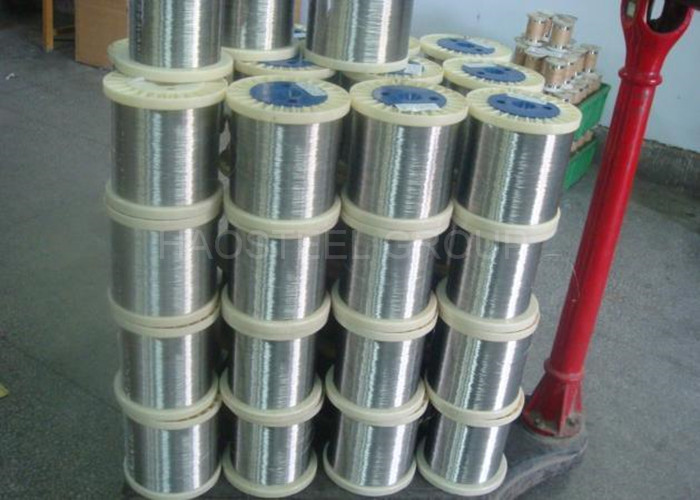

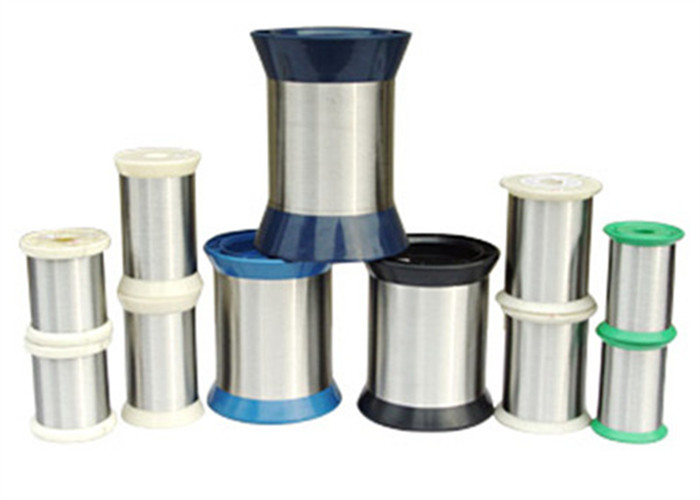

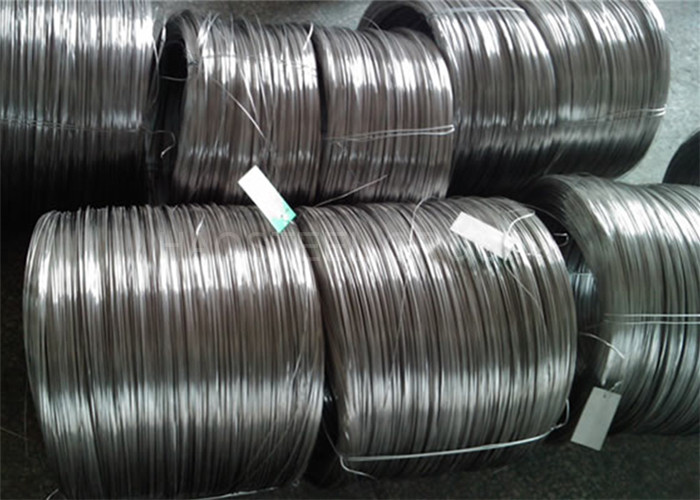

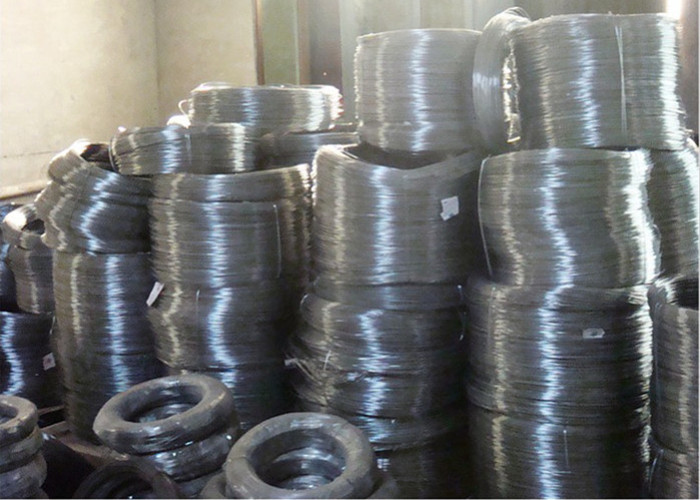

Products Show:
Product Application:
Stainless steel spring wire is applied to spray spring, battery welding, compression spring, tension spring, torsion spring, high strength spring, high fatigue spring, medical spring, non-magnetic spring, knitting spring.
Our advantage:
Our range of Wire made of Stainless Steel are not only known for their variety but are also known for their good quality, long life and very reasonable prices. Quality and service is our first priority, we effectively use technically advanced machinery equipment and the expertise of our work to deliver our stainless steel wired products
