Hot rolled cold rolled 304 304L 316 316L Stainless steel profile
HAOSTEEL is one of the most professional manufacturer and supplier of stainless steel angle bar.
Our factory is located in jiangsu province, more than 30 years production and management experience, make us enjoy good evaluation from clients all over the world. We have a whole stainless steel angle bar production line and first-class staff to satisfy all clients requirement.
Product Information:
Stainless steel profile, stainless steel bar through hot melting, extrusion, so that different sections of stainless steel materials.The production process of stainless steel profile mainly includes three processes: melting casting, extrusion and coloring.The stainless steel profile is used in engineering construction. Based on the stainless steel, it has good corrosion resistance, so it can make the structural parts maintain the integrity of the engineering design permanently.Chromium-bearing stainless steel is also a combination of mechanical strength and high extensibility. It is easy to manufacture parts and meet the needs of architects and structural designers.
After the first successful application, stainless steel profile has standard stainless steel Angle, flat and square steel.
Large steel
Round, square, hexagonal, octagonal -- diameter or distance not less than 81mm.
Flat steel width shall not be less than 101mm.
I-steel, channel steel -- height not less than 180mm.
Equal Angle steel -- the width of the edge is not less than 150mm.
Non-equal Angle steel -- not less than 100*150mm in width.
Round steel, square steel, hexagonal steel - diameter or opposite side distance is 38-80mm.
Fold medium - sized sections
Flat steel - width 60-100mm.
I-steel, channel steel -- less than 180mm in height.
Equilateral Angle steel - the width of the edge is 50-149mm.
Non-equal Angle steel - 40*60-99*149mm width.
Fold small sections
Round steel, square steel, rebar, hexagonal steel, octagonal steel - diameter or opposite side distance of 10-37mm.
Flat steel - not wide and 59mm.
Equal Angle steel - 20-49mm wide.
Non-equal Angle steel - 20*30-39*59mm wide.
Shaped section steel - steel window material included in this class.
Chemical Composition about stainless steel
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | ≤0.03 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤0.03 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤0.03 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |

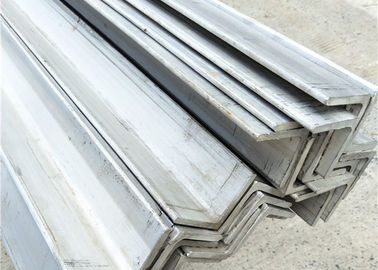

Product show
Applications:
1. Building stainless steel profile (divided into Windows, doors and curtain walls).
2. Radiator stainless steel profile
3. General industrial stainless steel profile: mainly used in industrial production, such as skeleton of automation machinery and equipment, sealing cover and companies according to their own custom mould machinery and equipment requirements, such as assembly line conveyor belt, lifting machine, glue machine, testing equipment, shelves, etc., and mostly in the clean room use electronic machinery industry.
4. Track vehicle structure: mainly used in the construction of track vehicle body.
