Stainless Steel Industrial Pipe Fittings Elbow Tee Reducer Cap Flange Casting

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Stainless Steel Industrial Pipe Fittings Elbow Tee Reducer Cap Flange Casting

Product Details:
Place of Origin: CHINA
Brand Name: HAOSTEEL
Certification: ISO9001,API,CE
Model Number: HSPF2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PLY-wooden case or pallet or as for clients' requirements
Delivery Time: 5-10 working days after order confirmed and receive deposit
Payment Terms: L/C, T/T
Supply Ability: 5000tons per month
Detailed Product Description
Product: Stainless Steel Pipe Fitting Elbow Tee Reducer Cap Flange Pipe Tube Fittings Standard: GB ,ASTM,JIS,BS,DIN,UNI Etc.
Grade: SUS201, SUS304,SUS316, SUS 304L , SUS 316L Connection: Welding
Technics: Casting Surface Of Finish: Antirust Oil,Hot Galvanized And Polish
Size : Seamless 1/2" To 24" Welded 24" To 72" Precision: Sch5--Sch160,XXS
High Light:

ss pipe fittings

,

stainless tubing fittings

Stainless Steel Pipe Fitting Elbow Tee Reducer Cap Flange Pipe Tube Fittings

Description:

Stainless steel pipe is a kind of pipe fittings, stainless steel material is it made so called stainless steel pipe fittings, it includes: stainless steel elbow, stainless steel tee, cross stainless steel, stainless steel reducer,
stainless steel pipe cap, etc.,
According to join method can be divided into the socket type stainless steel pipe fittings, flanges threaded stainless steel pipe fittings, stainless steel pipes and welded stainless steel pipe fittings four classes.
Stainless steel elbow is used for where the pipe turns;The flange is used for the part that connects the pipe to the pipe, connected to the pipe end, and the stainless steel tee pipe is used for the place where the three pipes come together.The stainless steel four-way pipe is used for the place where four pipes are collected; Stainless steel reducer is used where two pipes of different sizes are connected. Main stainless steel materials: 304, 304L, 316, 316L

Product Range:

Stainless steel tee, stainless steel elbow, stainless steel flange, stainless steel head, concentric reducer, threaded branch, threaded union, threaded cap, socket welded pipe, threaded 90 degree elbow, socket weld 90 degree elbow, socket welding 45 degree elbow, blind plate, stainless steel welded pipe 321, stainless steel welded pipe 316, stainless steel welded pipe 310S, stainless steel coil, 304 (304L) urea grade stainless steel, stainless steel sanitary pipe, stainless steel polished pipe, stainless steel sanitary Grade tube, duplex stainless steel tube, Monel alloy, Inconel alloy, Hastelloy alloy, stainless steel seamless tube, equal tee, stainless steel square tube, stainless steel shaped tube, stainless steel flange, concentric reducer, eccentricity, 180 degree stainless steel Elbow, stainless steel sanitary elbow, stainless steel mirror tube, neck butt weld flange, stainless steel size head, stainless steel rectangular tube, stainless steel industrial tube, stainless steel precision bright tube, stainless steel capillary tube, stainless steel coated tube.

Futures:
Main material: 304 (0Crr18Ni9)
Product characteristics: Good corrosion resistance, heat resistance, low temperature strength and mechanical properties. Good hot workability such as stamping and bending.
Product use: household appliances, auto parts, medical equipment, building materials, chemicals, food industry, agriculture, marine, atomic energy equipment.
Product specifications: outer diameter: 6-762mm, wall thickness is clean coal, maximum length: 18000mm, special specifications can be negotiated.

The stainless steel fluid tube is safe, reliable, hygienic and environmentally friendly, economical, and the pipe wall is thin, and the connection method is simple and convenient.

Specification:

Material

SUS201, SUS304, SUS316, SUS 304L, SUS 316L, SUS310S.

ASTM A403 WP304/304L/316/316L/317L/321/347H/316Ti/310S/S31803/904Letc.

Size

SMLS ---1/2"-24"

WELDED--24"-48"

Degree

5 deg, 10deg, 15deg, 22.5deg, 30deg, 45deg, 60deg, 90deg, 180deg

Standard ANSI, DIN, JIS
Certification

TUV, API, CRN, BV, ABS, PED, DNV, ISO9001-2008.

Capacity to produce 100,000.00pcs/week
Main products Includes elbows, sockets, tee, nipples, etc.
Application

Petroleum, gas, chemical, shipbuilding, metallurgy, construction industry, etc

Buyer’s drawings or designs are available
PackageCartons without palletCartons with pallet or as buyer’s requirements

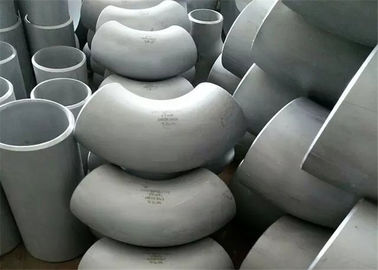

Product show:

Stainless Steel Industrial Pipe Fittings Elbow Tee Reducer Cap Flange Casting 0

Stainless Steel Industrial Pipe Fittings Elbow Tee Reducer Cap Flange Casting 1

Stainless Steel Industrial Pipe Fittings Elbow Tee Reducer Cap Flange Casting 2

Compression fitting
It has the characteristics of reliable connection, safe and convenient construction, suitable for embedded installation, maintenance-free update, and relatively superior economy.
The working principle of the clamped pipe fitting is to insert the thin-walled stainless steel pipe into the socket of the snap-in pipe fitting, and the stainless steel pipe is stuck in the pipe fitting by using a special pressing tool, and the cross-sectional shape of the pressing portion is hexagonal, and the stainless steel pipe is combined with There is an O-ring seal between the pipe fittings to make it leak-proof, pull-resistant, shock-resistant and high-pressure resistant. It is therefore a relatively advanced connector in direct drinking water systems, water systems, heating systems, steam systems, industrial tubing systems and industrial trachea systems. Suitable for pipe connection of water, oil and gas.
Nominal pressure: ≤1.6MPa
Applicable temperature: -20 ° C ~ 110 ° C
Applicable medium: non-corrosive or corrosive medium such as oil, water and gas
Manufacturing materials: stainless steel 304 316L
Piping: stainless steel welded steel pipe with Φ15.88~Φ108
Quick connect fitting
Snap-in self-locking circlip type pipe fittings
The quick flash connection method is a kind of "plug-in self-locking circlip connection" technology, as long as the pipe is one inserted stainless steel pipe fittings
Inserting the quick-connecting pipe fittings can achieve the quick flashing installation effect, and when disassembling, the pipe can be pulled out and removed by clamping the quick-connecting pipe fittings with a special portable tool.
The quick flashing pipe fittings are not only convenient and quick to install and disassemble, but also have excellent performances such as reusability, non-leakage, shockproof, buffering and shrinking heat rise, and are a new exploration and breakthrough in the pipeline connection mode. It has been widely used and verified in domestic and international water supply systems, and the pipe fittings in Hong Kong are designated pipes of the Water Supplies Department.
Through the special high temperature resistant rubber ring, the pipe fittings have been slowly applied and approved in the solar water heater water pipe, making installation and use more convenient. I believe that in the future, the pipeline connection technology will appear more new innovations and breakthroughs, and will continue to develop in the direction of convenience, speed, humanization, etc., and there will be more and more perfect products for human enjoyment.

Applications:

Stainless steel pipe fittings are the most reliable connection of all connections by inserting a stainless steel tube into the tube socket portion and then making a argon-arc welded tube along the edge of the tube. Pipe fitting diameter = pipe outer diameter. The welded part according to the edge of the pipe can be further divided into three kinds of pipe fittings: the edge of the slope, the edge of the edge and the section without the extension. The welding specification of the socket is generally DN15-DN100.
Butt welding stainless steel pipe fittings is a pipe fitting that makes a argon arc welding of the stainless steel pipe and the pipe fittings opposite to each other. Generally, welding welding is required.
Pipe socket outer diameter = pipe outer diameter.
Butt welding is generally used for welding stainless steel pipe systems of larger sizes

Pipe fittings is widely used in kinds of industry and building areas all over the world.It can be used for shipbuliding,petroleum,chemical,gas,power,construction,etc.
