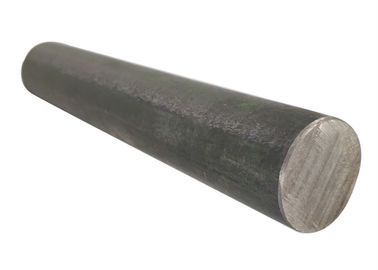

Industry Hastelloy X Round Bar / Hastelloy X Tubing Customzied Dimensions

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Industry Hastelloy X Round Bar / Hastelloy X Tubing Customzied Dimensions

Product Details:
Place of Origin: China
Brand Name: HAOSTEEL
Certification: SGS, BV, CCIC
Model Number: HastelloyX Uns N06002 .2.4665 Nc22fed Gh3536
Payment & Shipping Terms:
Minimum Order Quantity: 0.5ton
Packaging Details: In bundles with waterproof material
Detailed Product Description
Material: High Quality HastelloyX Hastelloy X Uns N06002 .2.4665 Nc22fed Gh3536 Type: Nickel Bar Wire
Grade: Nickel Base Alloy Shape: Sheet/strip/pipe/wrie/bar/ect
Standard: UNS,DIN,ASTM ,SAE,ISO,ASME Application: Industry
Specification: BV, SGS Dimensions: Customzied
Packages: In Bundles With Waterproof Material Shipping Port: Shanghai
High Light:

nickel steel alloy

,

corrosion resistant steel alloys

High Quality HastelloyX Hastelloy X Uns N06002 .2.4665 Nc22fed Gh3536



Product Description

HastelloyX is main with chromium and molybdenum solid solution strengthening of a high iron content, nickel-based superalloy has good resistance and corrosion resistance, under 900 ℃ has moderate lasting and creep strength, cold and hot working good formability and weldability.
Used in manufacturing of aircraft engine combustion chamber parts and other high temperature parts, use for a long time under 900 ℃, and short-term working temperature is 1080 ℃.
The main products are sheet, strip, pipe, bar, forging, ring and precision casting.
1.1 HastelloyX material brand HastelloyX
1.2 HastelloyX GH3536 to similar trademark, GH536 GH22, GH334, GH739, SG - 5 (China),
UNS NO6002, NC22FeD (France), NiCr22FeMo (Germany), Nimonic PE13 (UK)



Chemical Composition

Grade % Ni Cr Fe Mo W Co C Mn Si S Cu Al Ti
HastelloyX Min Bal. 20.5 17 8 0.2 0.5 0.05
Max 23 20 10 1.0 2.5 0.15 1 1 0.015 0.5 0.15 0.5

1.5 HastelloyX sheet and pipe heat treatment system: 1130 ~ 1170 ℃, fast air cooling or water cooling;
Bar and circular pieces of test samples: 15 ℃ 1175 ℃ +, air cooling or faster cooling;
Strip: 1065 ~ 1105 ℃, fast cooling.
1.6 HastelloyX variety specifications and supply status 0.5 ~ 4.0mm plate, 0.05 ~ 0.8mm strip, 4 ~ 20mm outside diameter, 1.0 ~ 2.0mm wall thickness of pipe, diameter 0.2 ~ 10.0mm welding wire, diameter 300mm rod and various diameter and wall thickness of the ring pieces and different shapes and sizes of precision casting.
Plate, strip and pipe after solid solution treatment and pickling supply, strip can also be cold rolling supply;
The welding wire can be delivered in hard state, semi-hard state, solid melting and pickling, bright and solid solution treatment state.
Bars and rings are delivered without heat treatment.
Precision casting is supplied in casting condition.
1.7 HastelloyX melting and casting process adopts arc furnace electroslag or non-vacuum induction furnace electroslag remelting process.
In the production of castings, the induction furnace remelting master alloy is used to pour the castings into the heated mold shell.
1.8hastelloyx application profile and special requirements the alloy has been widely used in foreign aero-engines and civil industries, and it is mainly used in the manufacture of combustor components and other hot end components as well as honeycomb structure in China.
The aging hardening of the alloy after long-term use at high temperature.
Physical and chemical properties of HastelloyX
2.1 thermal performance of HastelloyX
2.1.1 HastelloyX melting temperature range of 1295 ~ 1381 ℃
2.1.2 HastelloyX thermal conductivity see table 2-1.
2.1.3 specific heat capacity of HastelloyX see table 2-2.
See tab.2-3 for the coefficient of linear expansion of HastelloyX.
2.1.5 thermal diffusivity of HastelloyX alloy castings is shown in table 2-4.
Table 2-1


θ/℃
100 200 300 400 500 600 700 800 900
λ/(W/(m·℃)) 13.38 17.97 20.27 22.40 24.62 26.79 29.05 31.14 33.44

Table2-2


θ/℃
17 100 200 280 408 500 600 700 800 900
c/(J(kg·℃)) 372.6 372.6 389.4 456.4 427.1 452.2 464.7 515.0 535.9 561.0

Table2-3

θ/℃ 20~100 20~200 20~300 20~400 20~500 20~600 20~700 20~800 20~900
α/10-6℃-1 12.1 12.5 13.4 14.0 14.3 14.8 15.5 15.8 16.1

2.2 HastelloyX density rho =8.28g/cm3

2.3 electrical performance resistivity of HastelloyX see table 2-5.

Table 2-4


θ/℃
24 100 300 400 500 600 700 800 900
Q/(10-6m2/S)) 2.78 3.06 3.68 3.64 4.36 4.32 4.38 4.91 5.23

2.4 HastelloyX magnetic alloy is non-magnetic.

2.5 chemical properties of HastelloyX

2.5.1 oxidation rate of HastelloyX alloy after 100h in air medium test is shown in table 2-6.

Table 2-5


θ/℃
100 200 300 400 500 600 700 800 900
p/(10-6Ω.M)) 1.18 1.20 1.21 1.22 1.24 1.25 1.26 1.27 1.29

Table2-6


θ/℃
700 800 900 1000 1100
oxidation rate/(g/(m2·h)) 0.0023 0.060 0.117 0.200

0.611





Mechanical properties of HastelloyX
The mechanical properties of different varieties specified by HastelloyX technical standard are shown in table 3-1.
Table 3-1


varieties



Tensile properties at room temperature



815 ℃ durable performance



σP0.2/MPa σb/MPa δ5/% σ/MPa t/h δ5/%

Cold rolled sheet

Cold rolled strip

Cold drawn pipe

bar

Ring a

Casting

310

310
310
275
275

200

725

760
690
690
690
380

35
30
25
30
30

10

110

-
-
105
105
-

24
-
-
24
24
-
8.0
-
-
10.0
10.0
-
