316L 304L 304H 410 2205 2507 Stainless steel coil tube stainless steel pipe
HAOSTEEL is one of the most professional manufacturer and supplier of stainless steel Tube.Stainless steel tube can be divided into seamless tube and welded tube according to production mode. Seamless tube can be divided into hot rolled tube, cold rolled tube, cold drawn pipe and extruded tube.The welded pipe is divided into straight welded pipe and spiral welded tube.
Description:
Haosteel have a large range of ASTM A249 304 304L 316 316L 310S 321 317L 410 420 430 2205 2507 904L Stainless Steel Coil Pipe We offers a wide range of Round Pipes & Tubes, Coil, ‘U’ Shape tubes, Square pipes & tubes, Rectangular tubes, Seamless Pipe for the Chemical IndustryStainless Steel Pipes, TubesSeamless Steel Pipe for Boilers Capillary Pipes and Tubes
Grade: 201 304 304L 316 316L 316Ti 321 310S 317L 2205 2507 410 420 430 904L 625 825 ec t
Size: 6-25.4mm Thickness:0.2-2mm
Length: 600-3500M/coil
Standard: ASTM A269 A249 SUS DIN JIS GB
Surface : 2B 8k Bright anneald
Test : Yield strength, Tensile strength, Hardness ,Hydrapress Measurement
Guarantee&Inspection : The Third Party &Cetification ISO SGS
Advantage: We are a manufacturer . Lowest Price and Good Quantity
| GRADE | UNS NO | EURONORM | JAPANESE JIS | |
| NO | NAME | |||
| 304L | S30403 | 1.4306 1.4307 |
X2CrNi18-9/X2CrNi19-11 |
SUS 304L |
Short Description:
Grade 304 is the standard “18/8″ stainless; it is the most versatile and most widely used stainless steel, available in a wider range of products, forms and finishes than any other. It has excellent forming and welding characteristics. The balanced austenitic structure of Grade 304 enables it to be severely deep drawn without intermediate annealing, which has made this grade dominant in the manufacture of drawn stainless parts such as sinks, hollow-ware and saucepans. For these applications it is common to use special “304DDQ” (Deep Drawing Quality) variants. Grade 304 is readily brake or roll formed into a variety of components for applications in the industrial, architectural, and transportation fields. Grade 304 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.
Grade 304L, the low carbon version of 304, does not require post-weld annealing and so is extensively used in heavy gauge components (over about 6mm). Grade 304H with its higher carbon content finds application at elevated temperatures. The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures.
Key Properties
These properties are specified for flat rolled product (plate, sheet and coil) in ASTM A240/A240M. Similar but not necessarily identical properties are specified for other products such as pipe and bar in their respective specifications.
Composition
Typical compositional ranges for grade 304L stainless steels
| Grade | C | Mn | Si | P | S | Cr | Ni | N | |
| 304 |
min. max. |
- 0.08 |
- 2.0 |
- 0.75 |
- 0.045 |
- 0.030 |
18.0 20.0 |
8.0 10.5 |
- 0.10 |
| 304L |
min. max. |
- 0.030 |
- 2.0 |
- 0.75 |
- 0.045 |
- 0.030 |
18.0 20.0 |
8.0 12.0 |
- 0.10 |
| 304H |
min. max. |
0.04 0.10 |
- 2.0 |
- 0.75 |
-0.045 |
- 0.030 |
18.0 20.0 |
8.0 10.5 |
- |
Key Specifications/Special Features:
Standards: ASTM, AISI, DIN, EN, GB, JIS
Place of origin: China (Mainland)
Brand name: SH
Model number: SH-03-08
Type: seamless
Steel grade: 300 series 400 series 600series 800 series
Application: uesd in precision instruments and
Thickness: 0.05-6.5mm
Outer diameter:3.18mm-51mm
Welding line type: BV
Outer diameter: 6-50.8mm
Thickness: 0 .2-3mm
Packaging detail: wooden case for stainless steel tube
Packaging: wrapped in shaft and packed with plastic or custom packing
Specifications: Stainless steel coiled tubing
Max : 3500M per piece according to customer requirements.
Tolerance range: diameter: + 0.1mm, wall thickness: + 10%, length: -0/+6mm
Tolerance: OD± 0.1mm, wall thickness: ±10%, length: ±5mm
application : refrigeration equipment, evaporator,
gas liquid delivery, condenser, beverage machine
State: soft / half hard / soft bright annealing
Product advantages: surface polishing and fine, uniform wall thickness, tolerance precision etc..
Commonly Size of stainless steel coiled tube: we can product them as your reques
Composition ranges for 304L grade stainless steel
Mechanical Properties and composition
| Grade |
Tensile Strength (MPa) min |
Yield Strength 0.2% Proof (MPa) min |
Elongation (% in 50mm) min |
Hardness | |
|
Rockwell B (HR B) max |
Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| 304L | 485 | 170 | 40 | 92 | 201 |
| 304H | 515 | 205 | 40 | 92 | 201 |
| 304H also has a requirement for a grain size of ASTM No 7 or coarser. | |||||
| Name | High precision stainless steel capillary coil tube |
| Standards | ASTM A554, A312, A249, A269 and A270 |
| Material grade | 304, 304L, 316, 316L, 202, 201 321 310S 317L 410 420 430 825 625 2507 2205 904L 254SMo S32760 |
| Out diameter | 6-25.4mm |
| Thickness | 0 .2-3mm |
| Length | 6m or as customers’ request |
| Tolerance | a) Outer diameter: +/- 0.1mma) b) Thickness: +/- 0.01mm c) Length: +/- 6mm |
| Surface | 180G, 320G satin/hairline(matt finish, brush, dull finish)400G, 600G Mirror finish |
| Application | 1)Scientific research2)Medical device: Injection needles 3)Chemical industry 4)Thermal conductivity temperature control device 5)Telecom device: miniature antenna tube |
| Test | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT |
| Payment | 30% T/T as deposit, the balance before shipment or L/C |
| Delivery time | 10~30 days ,according to the order quantity |
| Packing | Bundled with knitted plastic bag, wooden cases or according to customers’ request |
Our advantages:
We are a stainless steel coiled tube/pipe manufacturer.
We can control the quality of pipe by ourselves.
The length of the pipes is more than 3500M/Coil.
Description:
Our company has three production line of stainless steel coiled tube ,stainless steel pipe ,we have exporting experience for more than ten years ,the bending, stretching, saw cutting, stamping, polishing and so on a series of processing equipment , our stainless steel product widely used in bathroom pendant, hanger accessories, hardware, and condensation water heating equipment, hotel supplies and so on. our company sincerely hope that domestic and foreign customers to provide drawings or samples.
Stainless steel coiled tubes/coil tubing common size range
| Size of Stainless steel Coil Tube | ||||
| ITEM | Grade | Size(MM) | Pressure(Mpa) | Length(M) |
| 1 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | 1/8″×0.025″ | 3200 | 50-2000 |
| 2 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | 1/8″×0.035″ | 3200 | 50-2000 |
| 3 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | 1/4″×0.035″ | 2000 | 50-2000 |
| 4 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | 1/4″×0.049″ | 2000 | 50-2000 |
| 5 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | 3/8″×0.035″ | 1500 | 50-2000 |
| 6 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | 3/8″×0.049″ | 1500 | 50-2000 |
| 7 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | 1/2″×0.049″ | 1000 | 50-2000 |
| 8 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | 1/2″×0.065″ | 1000 | 50-2000 |
| 9 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ3mm×0.7mm | 3200 | 50-2000 |
| 10 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ3mm×0.9mm | 3200 | 50-2000 |
| 11 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ4mm×0.9mm | 3000 | 50-2000 |
| 12 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ4mm×1.1mm | 3000 | 50-2000 |
| 13 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ6mm×0.9mm | 2000 | 50-2000 |
| 14 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ6mm×1.1mm | 2000 | 50-2000 |
| 15 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ8mm×1mm | 1800 | 50-2000 |
| 16 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ8mm×1.2mm | 1800 | 50-2000 |
| 17 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ10mm×1mm | 1500 | 50-2000 |
| 18 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ10mm×1.2mm | 1500 | 50-2000 |
| 19 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ10mm×2mm | 500 | 50-2000 |
| 20 | 304L 304 316 316L 310S 321 625 825 2205 2507 904L | φ12mm×1.5mm | 500 | 50-2000 |
Our advantages:
We are a stainless steel coiled tube/pipe manufacturer.Widest range of Stainless Steel 304l Seamless, Welded Pipes & Tubes in China.
| Sch 9.52mm Type 304L Stainless Steel Pipe | Schedule 40 Type 304L Stainless Steel Pipe |
| ASTM 5564 1/8” Seamless Tubing coil tubing | Polished 304L Stainless Steel Tubing |
| 304L Stainless Steel Threaded Pipe | Sus 304L Stainless Steel Rectangular Tube |
| JIS SUS304L Seamless Tubes | 304L SS Round Tube suppliers |
| SS 304L Welded Tubes for oil and Gas | AMTM 5560 Seamless Tube suppliers |
| ASTM A312 TP304L Coiled Tubing | Stainless Steel Inox 304L Capillary Tubing |
| ASTM A312 Gr TP 304L Aerospace tubes | AMS 5566 High Pressure Tube |
| SA213 TP 304L Sighting Tube | Type 304L Stainless Steel Polished Pipes |
| ASTM A312 TP304L Elliptical and Oval Tubes | AMS 5567 Rectangular Tube |
| ASTM A213 TP304L Condenser Tube | AMS 5563 1/4” *0089”Seamless seamless steel tubes |
| ASTM A269 TP304L straight tube boiler | AMS 5563 Welded furnace tube |
| ASTM A249 TP304L Mirror Tube | AMS 5564 1/8” Welded Tubing, High-Pressure Hydraulic |
| UNS S304L00 Pitot Tube stockist | Stainless Steel 304L Seamless Round Tubing |
| ASTM A358 TP304L Polished Tubing | 304L Stainless Steel Ornamental Tube |
| Stainless Steel 304L Exhaust Pipe | 304L Stainless Steel Spiral Pipe |
| ASME SA213 TP304L Perforated Tube | WERKSTOFF NR. 1.4306 1.4307 Flexible Tube |
| SA 688 TP304L Finned Tube | SS 304L seamless steel coiled Tube |
| Din 1.4306 1.4307 AISI 304L Perforated Exhaust Tube | Stainless Steel 304L Hypodermic Tubing |
| Din W.-Nr. 1.4306 1.4307 Aisi 304L Corrugated Tube | SS 304L Honed Tube |
| Material 1.4306 1.4307 Aisi 304L Slotted Handrail Tube | SS 304L Thin Wall Tube |
| ASTM 3/8”*0.035” stainless steel coiled tube | 304L Stainless Steel Threaded Pipe |
| Stainless Steel 304L Ornamental Pipe | Stainless Steel 304L Fin Tube / Finned Tube |
| S304L00 Stainless Steel U Shaped Tube | 304L Stainless Steel Square Tube Mirror Finish |
| Din 1.4306 1.4307 Material Vacuum Tube | ASTM 6.35*1.24 stainless steel coiled tubing |
| 304L Stainless Steel Rectangular Pipe | 304L Stainless Steel Hypodermic Tubing for Medical Needle |
| Ultra-High Purity Electropolished Stainless Steel 304L Tube | Thin Wall Stainless Steel 304L Tube |
| Din 1.4306 1.4307 Stainless Steel Annealed Tubing | 304L Stainless Steel Coil Tubing Heat Exchanger |
| SAE J405 Uns S30403 Thin Wall Tubing | 304L Stainless Steel Metric Tubing |
| 304L Stainless Steel Seamless Square Tubing | Large Diameter 304L Stainless Steel Tube |
| 304L Stainless Steel Lined Pipe | Corrugated 304L Stainless Steel Tube for Gas and oil |
| ASTM A249 stainless steel coil tubing | 304L Stainless Steel Instrumentation Tubing |
| 9.52*1.24MM Coiled Tubing | 304L Stainless Steel Square Tubing |
| High-pressure 304L Stainless Steel Water Pipe | Stainless Steel 304L Hexagonal Pipe |
| Jis 304L Stainless Steel Coil Tubing | Stainless Steel 304L Boiler Tube |

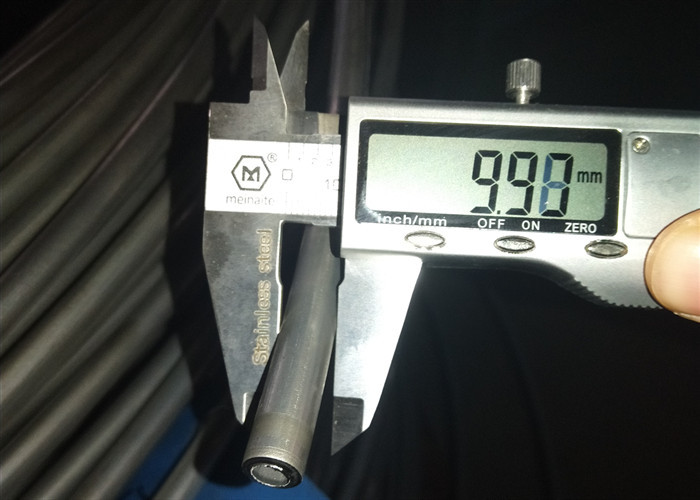

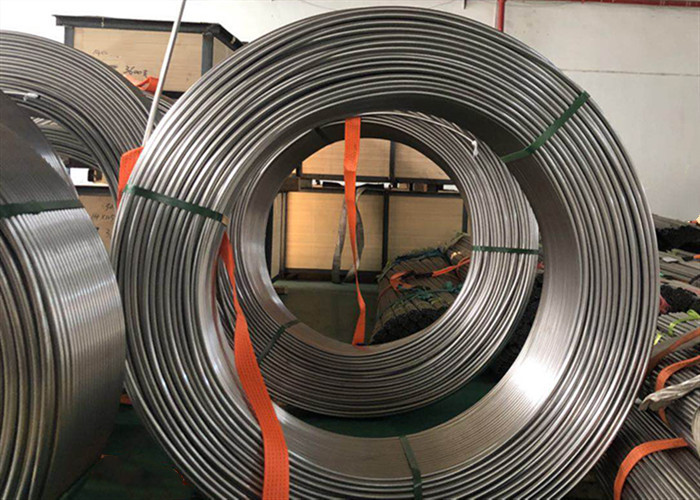

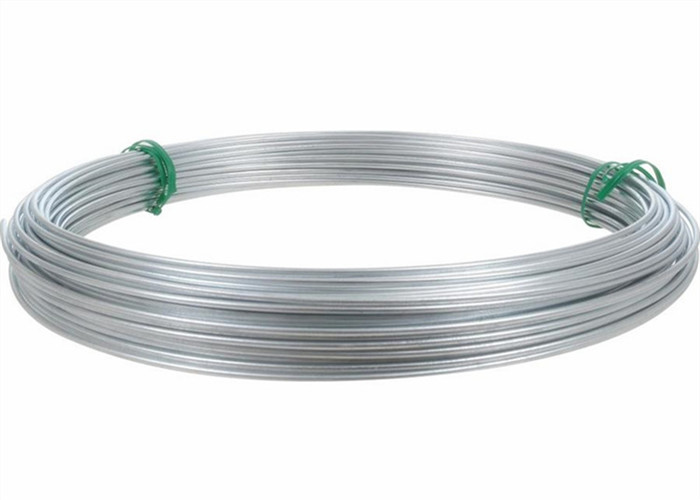

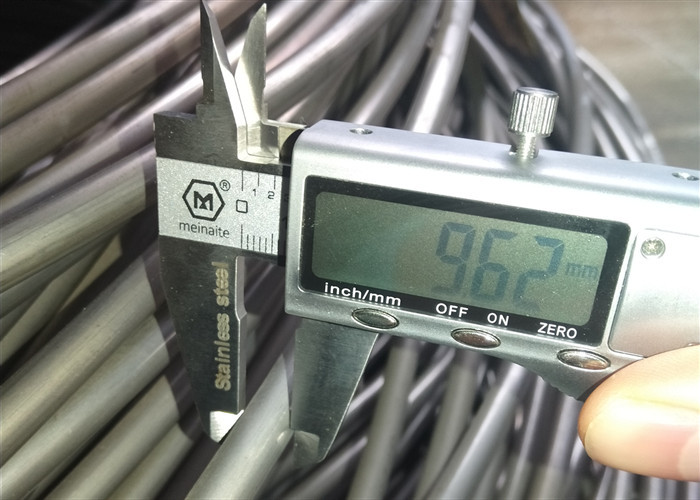

Product show
ASTM A249 304L Stainless Steel Coil Pipe Dimensional Range & Specification
ASTM A249 304L Stainless Steel Coil Pipe Available Size
ASTM A249 304L Stainless Steel Coil Pipe Test Certificate
ASTM A249 304L Stainless Steel Coil Pipe Value Added Service

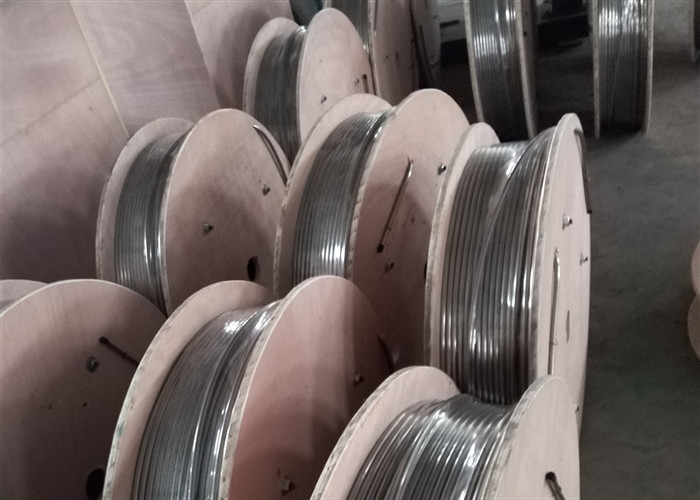

ASTM A249 304L Stainless Steel Coil Pipe Packaging and Transportation
ASTM A249 304L Stainless Steel Coil Pipe other Available Grades
ASTM A249 304L Stainless Steel Coil Pipe Warehouse & Inventory
ASTM A249 304L Stainless Steel Coil Pipe Price
ASTM A249 304L Stainless Steel Coil Pipe value added service
Draw & Expansion as per required Size & Length
Polish (Electro & Commercial) Heat Treatment
Bending
Annealed & Pickled
Sand Blasting
Machining Etc.
ASTM A249 304L Stainless Steel Coil Pipe Advantages
High strength
Resistant to high mechanical stresses
Resistant to high pressure
Resistant to high temperature
Good formability
Reusable
Grade: 201 304 304L 316 316L 316Ti 321 310S 317L 2205 2507 410 420 430 904L 625 825 ec t
Size: 6-25.4mm Thickness:0.2-2mm
Length: 600-3500M/coil
Standard: ASTM A269 A249 SUS DIN JIS GB
Surface : 2B 8k Bright anneald
Test : Yield strength, Tensile strength, Hardness ,Hydrapress Measurement
Guarantee&Inspection : The Third Party &Cetification ISO SGS
Advantage: We are a manufacturer . Lowest Price and Good Quantity
