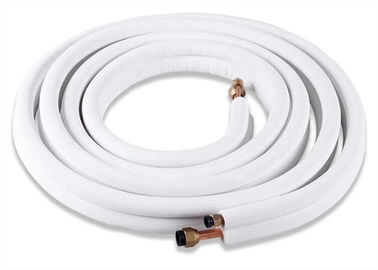

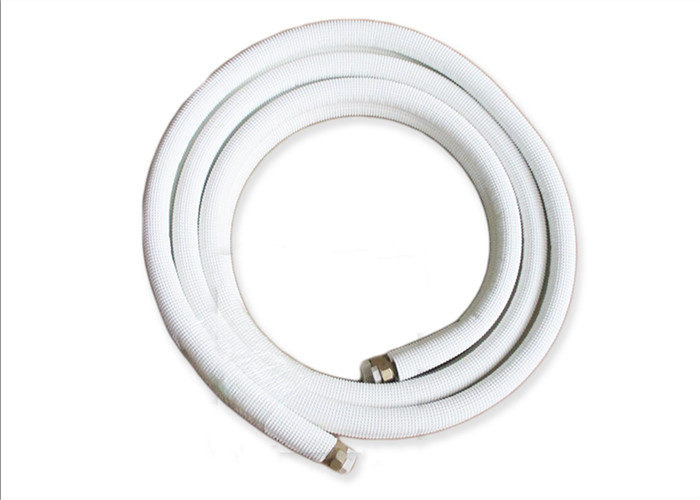

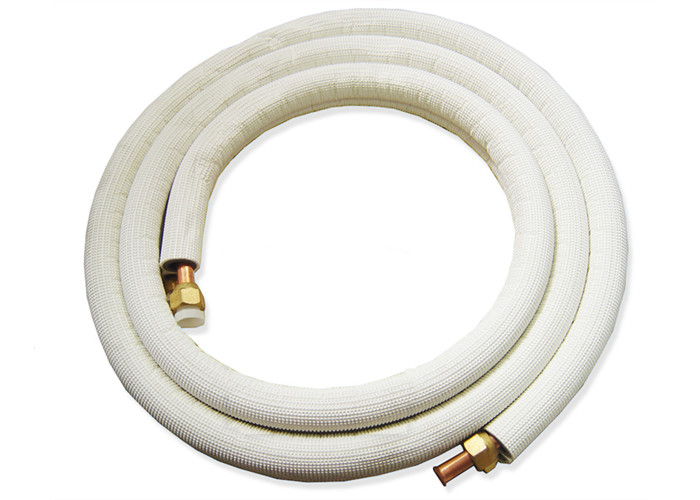

Fireproof insulation refrigeration air conditioner pvc coated insulation pair coils PE insulated copper pipe tube
Description:
Copper and copper alloy tubes for industry are superior at thermal conductivity, corrosion resistance, physical properties and mechanical properties. Using in the field of Shipbuilding, Heat exchanger, Heating coil, Desalination plants, Petrochemistry equipment and offshore project
1 ) Advantage:
a. Good corrosion resistance; b. Excellent mechanical properties; c. Low-pressure loss;
d. Comparatively light in weight e. Sturdy shape, pleasant to the eye when exposed;
f. Impervious to harmful chemical; g. Cost effective; h. Recyclable & have resale value.
2 ) Plating: Cooper coated
3 ) Certifiction: ISO9001
4 ) Package: cut-to-length /in coils, as your requirement.
5 ) Standard: Country YB/T4164--2007
6 ) Shape: Round
7 ) Raw materials: low carbon steel tube/ BHG2
8 ) Surface treatment: white /dark green/ orange red/ olive green/ color zinc
Specification:
Product name |
Insulated copper pair coil kit |
HAOSTEEL |
HAOSTEELService |
Accessories |
Optional |
Shape |
Round |
Usage |
Air Conditioner or Refrigerator |
Suitable for |
1~5 HP |
Package |
Poly bag, carton or wooden case |
Length |
3-30M |

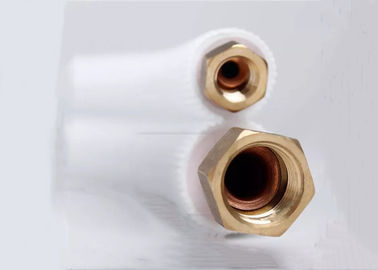

Nuts/Plug |
Optional |
Size |
Copper pair size(mm) |
Length |
Insulated cotton size(mm) |
||
Outer Diameter |
Thickness |
Inner diameter |
Thickness |
||
1/4"-3/8" |
6.35 X 9.52 |
0.8X0.8 |
3~30M |
8 X 12 |
9 X 9 |
1/4"-1/2" |
6.35 X 12.7 |
0.8X1 |
3~30M |
8 X 15 |
9 X 9 |
1/4"-5/8" |
6.35 X 15.88 |
0.8X1 |
3~30M |
8 X 18 |
9 X 9 |
3/8"-5/8" |
9.52 X 15.88 |
0.8X1 |
3~30M |
12 X 18 |
9 X 9 |
3/8"-3/4" |
9.52 X 19.05 |
0.8X1 |
3~30M |
12 X 22 |
9 X 9 |
1/2"-3/4" |
12.7 X 19.05 |
1X1 |
3~30M |
15 X 22 |
9 X 9 |
Item | copper pipe / copper tube |
Type
|
straight copper pipe,pancake coil copper pipe,capillary copper pipe |
Standard
|
GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395, ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc
|
Material
|
T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300, C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000, C71500,C71520,C71640,C72200,etc
|
Shape
|
Round,Square,Rectangular,Oval,half-round
|
Size |
Round:OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S) Square: Size:2*2-1016*1016mm(1/16"-40") WT:0.2-120mm Rectangular:Size:2*4-1016*1219mm(1/16"-48") WT:0.2-120mm Length:1m,2m,3m,6m,or as required
|
Hardness
|
1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
|
Surface
|
mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
|
Export to |
Singapore,Indonesia,Ukraine,Korea,Thailand,Viet Nam,Saudi Arabia,Brazil,Spain,Canada, USA,Egypt,Iran,India,Kuwait,Dubai,Oman,Kuwait,Peru,Mexico,Iraq,Russia,Malaysia,etc |
Package | Standard export package ,or as required. |
Application
|

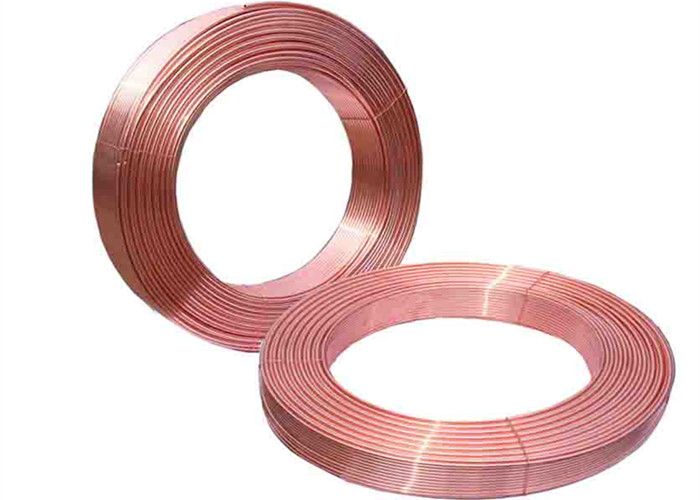

1. Pancake Coil for ACR, General Engineering Applications 2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration 4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6.PE-coated copper tube for water/gas/oil transportation system 7.Semi-finished Copper tube for industrial applications
|
Product show:
We has more than 200 equipment, including five-axis CNC machine tool, automatic punching machine, automatic lathe, CNC, automatic milling machine, automatic thread rolling machine, etc.At the same time, we have introduced advanced testing equipment to ensure that the products are qualified, and win customers' trust in high quality products.
Why you chose us
Finished product inventory of more than 50,000 tons.
Raw material inventory - more than 80,000 tons.
Transport of goods - more than 50 countries.
We have the most convenient transportation and timely delivery.
We offer competitive price and best service.
We have high technology production line and high quality products.
We have won a high reputation for the best quality products
