Inconel 718 2.4668 Nickel-Based alloy steel bar wire plate coil pipe Inconel 600 601 617 625 718 X 750 alloy steel

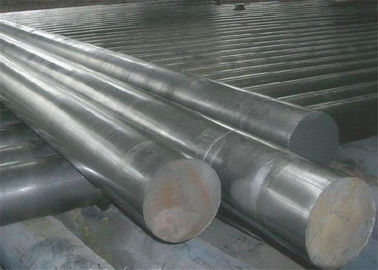

Inconel 718 Nickel-Based Nickel alloy steel round bar
Inconel 718 is a Fe-Ni-Cr based precipitation hardening type superalloy with long-term temperature range of -253~650°C, short-term use temperature of 800°C, high strength, good toughness and high and low temperature environment below 650°C. Both have oxidation and corrosion resistance. Good processing properties and weldability and long-term tissue stability.
Incone l718 is similar to the brand:
GH4169 GH169 (China), NC19FeNb (France), W.Nr.2.4668 NiCr19Fe19Nb5 (Germany)
Complete specifications, stock in stock Inconel718 alloys
Strip, sheet (thick plate, medium plate, sheet, steel plate), bar (black bar, light bar, grinding bar, round bar, square bar, steel bar), pipe (capillary, seamless pipe, steel pipe), Forgings (flanges, elbows, bolts, nuts, tees), welding consumables (welding rods, welding wire, welded pipes), wire and other materials.
Product application: It is widely used in aerospace, electric power, petrochemical, shipbuilding, machinery, electronics, environmental protection and other industries.
Whether in high temperature or low temperature environments, Inconel718 alloys have excellent resistance to stress corrosion cracking and pitting. Inconel718 alloy is particularly excellent in oxidation resistance at high temperatures.
Characteristics of Inconel718 alloy:
1. Easy processing
2. High tensile strength, fatigue strength, creep strength and breaking strength at 700 °C
3. High oxidation resistance at 1000 ° C
4. Stable chemical properties at low temperatures
5. Good welding performance Inconel 718
Chemical Composition Of Incoloy 718
alloy | C | Mn | Si | P | S | Cr | Ni | Cu | Mo | Fe | Nb | Co |
Inconel 718 | ≤0.08 | ≤0.35 | ≤0.35 | ≤0.020 | ≤0.015 | 17.0~21.0 | 50~55.0 | ≤0.30 | 2.8~3.3 | Re | 4.75~5.5 | ≤1.0 |
Inconel718 metallographic structure:
The standard heat treatment state of the alloy consists of γ matrix γ', γ", δ, NbC phases
Inconel718 process performance and requirements:
1. Due to the high content of niobium in Inconel718 alloy, the degree of niobium segregation in the alloy is directly related to the metallurgical process.
2. In order to avoid excessive segregation of elements in the ingot, the diameter of the ingot used is not more than 508 mm.
3. The homogenized alloy has good hot workability, and the billet heating temperature of the ingot should not exceed 1120 °C.
4. The average grain size of the alloy is closely related to the degree of deformation of the forging and the final forging temperature.
5, the alloy has satisfactory welding performance, can be welded by argon arc welding, electron beam welding, seam welding, spot welding and other methods.
6, different alloy solution treatment and aging treatment process will get different material properties. Due to the low diffusion rate of the γ" phase, the Inconel 718 alloy achieves the best mechanical properties through prolonged aging treatment.
Specifications
Product Name | alloy bar & steel bar |
Production Process | Cold Drawn,Cold Rolled,Hot Rolled,Bright Anneal etc |
Size | 5.5-110mm(Hot rolled), 2-50mm(Cold drawn),110-500mm(Forged) |
Standard | ASTM EN DIN GB ISO JIS |
Tolerance | +/-0.05 ~+/0.02 |
Surface
|
Pickling,Bright; No.1,2B,No.4,BA,8K Satin,Brush,Hairline,Mirror,Polished 180 grits,320 grits,400 grits,600 grits,800 grits polished |
Application | Constructions feilds and ship building industries Petroleum,Chemical industries,War and electiciy industries. Food processing and medical industries. Boiler heat cxchangers,Machinery and hardware feilds. |
Materials |
Titanium alloy:TI-6AL-4V,TI-5AL-2.5SN,TA1,TA2,TA3,TA4,TA0,TC4 200series:201 202 |
Application areas:
It is used to make ring parts, blades, fasteners and structural parts in aviation, aerospace and petrochemical industries. It can produce a variety of parts for petrochemical applications, which can be mass-produced and used well. The alloy can be used in the vacuum self-consumption remelting process, which can effectively reduce the segregation of antimony elements. The ring forming process can be used to produce the ring parts, which can reduce the cost and cycle. The superplastic forming can expand the production range. It is suitable for the production of ring parts, blades, fasteners and structural parts in aviation, aerospace and petrochemical industries, mainly including rods, plates, tubes, belts, wires, etc.
Inconel718 alloys are used in a wide variety of demanding applications.
Turbine
2. Liquid fuel rocket
3. Cryogenic engineering
4. Acidic environment
5. Nuclear engineering
