446 420 Precision Stainless Steel Tubing Seamless Polished Stainless Tube Pipe

446 420 Precision Stainless Steel Tubing Seamless Polished Stainless Tube Pipe
Features Gallery Product Description Request A Quote
Product: 430 409 446 410 420 Precision Stainless Steel Seamless Tube Pipe
Grade: 200 Series: 201, 202,200Gu, 201Gu,301, 302, 303, 303Gu, 304, 304L, 304Gu,309, 316, 316L, 310, 310S, 316Ti, 316N,317,317L,321,347,347H ,410,416,420,430,904L
Surface: Pickled And Bright Polished Finish
Technique: Cold Rolled Hot Rolled
Thickness: 0.3mm ~ 60mm
OD: 6mm ~ 1175mm
Length: 2m ~ 6m,Customer's Requirement
High Light:

446 Stainless Steel Tubing


420 Precision Stainless Steel Tubing


seamless polished stainless tube

Basic Infomation
Place of Origin: CHINA
Brand Name: HAOSTEEL
Certification: ISO9001
Model Number: HS430
Payment & Shipping Terms
Packaging Details: Woven bags and plastic strips inside packing, wooden / iron pallet and steel strips outside packing.
Delivery Time: 5-10 working days after order confirmed and receive deposit
Supply Ability: 5000tons per month
Product Description

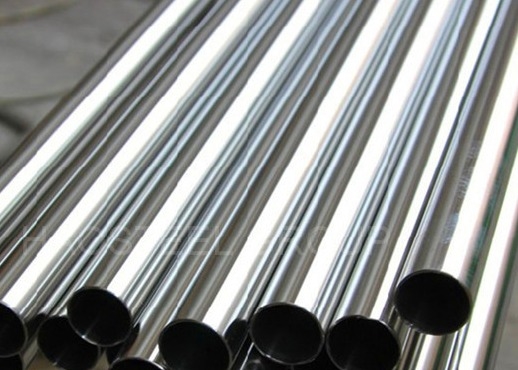

430 409 446 410 420 precision stainless steel seamless tube pipe



HAOSTEEL is one of the most professional manufacturer and supplier of 430 409 446 410 420stainless steel Tube.Stainless steel tube can be divided into seamless tube and welded tube according to production mode. Seamless tube can be divided into hot rolled tube, cold rolled tube, cold drawn pipe and extruded tube.The welded pipe is divided into straight welded pipe and spiral welded tube

Composition Specification (%)

Grade C Mn Si P S Cr Mo Ni N
430 min. max. - 0.12 - 1.00 - 1.00 - 0.040 - 0.030



- - 0.75 -
430F min. max. - 0.12 - 1.25 - 1.00 - 0.06 0.15



- - -


Physical Properties (typical values in the annealed condition):

Grade Density (kg/m3)

Elastic Modulus


Mean Coefficient of Thermal Expansion Thermal Conductivity

Specific Heat

( J/kg.K)

Electrical Resistivity




at 100°C (W/m.K) at 500°C (W/m.K)
430 7700 200 10.4 11.0 11.4 23.9 26.0 460 600
430F 7700 200 10.4 11.0 11.4 26.1 26.3 460 600


Grade Specification Comparison:




Euronorm Swedish SS Japanese JIS
No Name
430 S43000 1.4016 X6Cr17 2320 SUS 430
430F S43020 1.4105 X6CrMoS17 2383 SUS 430F


Corrosion Resistance:
Grade 430 has good resistance to a wide variety of corrosive media including nitric acid and some organic acids. It attains its maximum corrosion resistance when in the highly polished or buffed condition. Its resistance to pitting and crevice corrosion resistance is a little lower than that of Grade 304. It is not usually recommended for Grade 430 to be subjected to exterior exposure, but it performs well in mild indoor environments. Stress corrosion cracking resistance of Grade 430 is very high, as it is for all ferritic grades.

The Chinese brand corresponding to the 430 stainless steel pipe --S43000,AISI, ASTM 430 is 1Cr17. Its characteristics and USES are as follows: general steel with good corrosion resistance, building interior decoration, heavy oil burner parts, household appliances, household electrical parts, excellent deep-drawing performance, similar to 304 steel;
It has strong corrosion resistance to oxidizing acids and corrosion resistance to alkali liquor and most organic acids and inorganic acids.Stress corrosion cracking resistance is stronger than 304 steel;
The thermal expansion coefficient is lower than 304 steel, which has high oxidation resistance and is suitable for heat-resistant equipment.Cold rolling product appearance of good brightness, beautiful


Heat Resistance
Grade 430 Resists oxidation in intermittent service up to 870°C and to 815°C in continuous service. This grade may become brittle at room temperature after prolonged heating in the 400-600°C range. This effect can be eliminated by annealing.Heat Treatment Solution Annealing Heat to 815-845°C, hold for ½ hour per 25mm of thickness, slow furnace cool to 600°C and then quickly air cool. Slow cooling from 540- 400°C will cause embrittlement.Sub-Critical anneal,Heat to 760-815°C and then air cool or water quench.


Specified Properties
These properties for 430 are specified for flat rolled product (plate, sheet and coil) in ASTM A240/A240M. Properties of Grade 430F are specified for bar in ASTM A582. Similar but not necessarily identical properties are specified for other products in their respective specifications.


If welding is necessary pre-heat at 150-200°C. Embrittlement in the weld metal and heat affected zone can be reduced by a post-weld anneal at 790-815°C, but grain refinement will not occur. Use Grade 430, 308L, 309 or 310 filler rod, depending upon application. AS 1554.6 pre-qualifies welding of Grade 430 with Grade 309 filler rods and electrodes.


Grade 430 is easier to machine than the standard austenitic grades such as 304, but there is still a tendency for galling and pick-up on the cutting tool. Bars that have been lightly drawn are easier to machine than those in the annealed condition, but Grade 430 is not usually available in bar. Grade 430F, the free machining version of 430, is very much easier to machine.


Typical Applications
Linings for dish washers and panels in other domestic appliances. Refrigerator cabinet panels. Automotive trim. Lashing wire. Element supports. Stove trim rings. Fasteners. Chimney liners.
