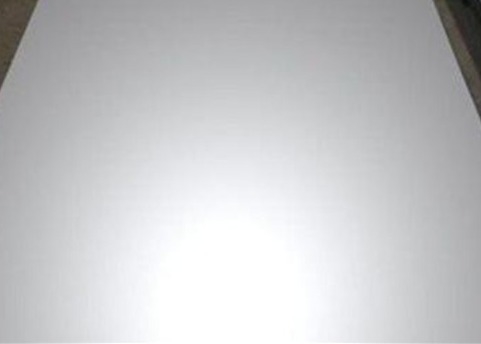

Astm A240 304 Stainless Steel Plate 2000mm Width Cold Rolled
Stainless Steel Plate Description:
HAOSTEEL is one of the most professional manufacturer and supplier of ASTM A240 304 304L stainless steel plate .We offer highly reliable sus 304 stainless steel plate in various grades,including mid plate,thick sheet,cold drawn steel sheet and hot rolled steel plate.
Stainless Steel Grade 304 is the standard 18/8 (18% chrome, 8% nickel) austenitic stainless steel. It is a non-magnetic alloy in the annealed condition but becomes magnetic as it is cold worked. It is the most commonly used of all stainless grades. TP304 can be easily welded and is the choice for many deep drawn, spun or formed parts due to its high ductility.
Chemical composition:
| C | Si | Mn | P | S | Cr | Ni | N |
| ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.03 | 18.0 - 20.0 | 8.0 - 10.5 | ≤ 0.10 |
Physical Properties:
| Grade | State | Hardness HV | Yield Strength | Tensile Strength | Elongation(%) |
| SUS304 | ANN | ≤200 | >205 | >520 | >40 |
| 1/4H | 200-250 | >225 | >550 | >35 | |
| 1/2H | 250-310 | >470 | >780 | >6 | |
| 3/4H | 310-370 | >665 | >930 | >3 | |
| H | 370-430 | >880 | >1130 | -- | |
| SUS301 | ANN | ≤250 | >205 | >520 | >40 |
| 1/4H | 250-310 | >470 | >780 | >35 | |
| 1/2H | 310-370 | >510 | >930 | >10 | |
| 3/4H | 370-430 | >745 | >1130 | > 5 | |
| H | 430-490 | >1030 | >1320 | >3 | |
| EH | 490-550 | >1275 | >1570 | -- | |
| SH | >550 | >1500 | >1850 | -- | |
| SUS201 | ANN | <200 | >205 | >515 | >40 |
| 1/4H | 200-250 | >250 | >550 | >35 | |
| 1/2H | 250-310 | >470 | >780 | >6 | |
| 3/4H | 310-370 | >665 | >930 | >3 | |
| H | 370-430 | >880 | >1130 | -- | |
| SUS430 | ANN | <200 | >205 | >450 | >22 |
| 1/2H | 200-250 | >330 | >505 | >10 | |
| H | 250-310 | >420 | >750 | >6 | |
| SUS443 | ANN | <200 | >305 | >483 | >31 |
| SUS310S | ≤200 | <200 | >205 | >520 | >40 |
| SUS316L | ≤200 | <200 | >310 | >620 | >40 |
Annealed:
Ultimate Tensile Strength – 75 KSI min (515 MPA min)
Yield Strength (0.2% Offset) – 30 KSI min (205 MPA min)
Elongation – 40% min
Hardness – HRB92 max (210HV max)
Tempered Condition:
304 can be provided in the tempered condition. Please refer to HAOSTEEL Technical Services for more information.
Corrosion Resistance:
304 has excellent corrosion resistance and is used in many corrosive environments and atmospheres.
The Grade Range:
a.)200Series : 201,202.204Cu.
b.)300Series : 301,302,304,304Cu,303,303Se,304L,305,307,308,308L,309,309S,310,310S .etc.
c.)300Series :410,420,430,420J2,439,409,430S,444,431,436,441,446,440A,440B,440C.etc.
d.)Others :2205,904L,S31803,330,660,630,17-4PH,631,17-7PH,2507,F51,S31254 etc.
The Size Range:
a.)Thickness : 3~150mm
b.)Width:1500mm,1800mm, 2000mm ,2500mm or as customers’ required
c.)Length:3000mm,6000mm or as customers’ required
Stainless Steel Plate Application:
304 Stainless Steel is used in a wide variety of home and commercial applications, including:
Kitchen benches, sinks, troughs, equipment, and appliances
Chemical containers, including for transport
Food processing equipment, particularly in beer brewing, milk processing, and wine making
Heat exchangers
Architectural trim and molding
Woven or welded screens for mining, quarrying & water filtration
Automotive and aerospace structural use
Nuts, bolts, screws, and other fasteners in the marine environment
Construction material in large buildings
Dyeing industry
