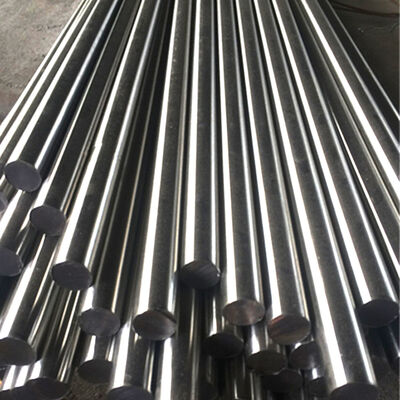

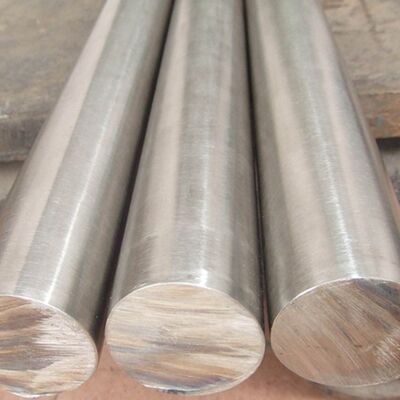

Inconel X-750 Nickel Alloy Steel Round Bar - Corrosion Resistant High Temperature Strength for Aerospace Applications

100
MOQ
Inconel X-750 Nickel Alloy Steel Round Bar - Corrosion Resistant High Temperature Strength for Aerospace Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Steel Grade: Inconel 600 601 617 625 713 718 X-750
Alloy Or Not: Is Alloy
Application: Structural Steel Bar
Standard: AiSi, ASTM, BS, DIN, GB, JIS, UNS,DIN,ASTM ,SAE,ISO,ASME
Technique: Hot Rolled
Type: Alloy Steel Bar
Product Name: Inconel X 750 Nickel Alloy Steel Round Bar Inconel 600 601
Surface: Polished Hot Rolled Steel
Grade: Nickel Base Alloy 600 601 617 625 718 X-750 800 800H 900 925 926
Length: 1-12m
Diameter: 3mm-650mm
Technology: Hot Rolled Cold Draw Forge
Shape: Sheet Strip Pipe Wrie Bar Ect
Package: Standard Seaworthy Packging
Highlight:

Corrosion Resistant Nickel Alloy Steel Round Bar

,

High Temperature Strength Inconel X-750

,

Aerospace Application GH4145 Alloy Steel Bar
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: HAOSTEEL
Model Number: 600 601 617 625 X-750 713 800 800H 900 925 926
Payment & Shipping Terms
Product Description
Product Description

Inconel nickel base alloy X750 Nickel alloy steel round bar

In recent years, China's stainless steel has developed rapidly, and the overall qualification rate has reached 80%. The demand and production of domestic stainless steel has entered a new stage of stable development. However, high-quality stainless steel and corrosion-resistant alloys with high quality, multi-standard and strict requirements in the industrial field still need to be imported. With the new round of upgrading of industrial equipment, the application of special stainless steel will become more and more extensive.



Inconel X750 Corresponding grade: GH4145 American standard USN N07750 German standard 2.4669
InconelX-750 alloy is mainly made of γ'[Ni3(Al, Ti, Nb)] phase-strengthened nickel-based superalloy. It has good corrosion resistance and oxidation resistance below 980 °C, and has high performance below 800 °C. Strength, below 540 °C has good resistance to slack, but also has good formability and welding performance. This alloy is mainly used in the manufacture of aero-engines operating below 800 ° C and requires high-strength corrosion-resistant ring parts, structural parts and bolts, etc., working at or below 540 ° C with medium or low stress and requiring relaxation resistance Spring and coil spring. It can also be used to make parts such as turbine blades. Available varieties are sheet, strip, bar, forging, ring, wire and pipe.

Inconel X750 nickel-based alloy chemical composition:

Grade

Ni

C

Si

P

Mn

Si

S

Cu

Fe

Nb

Al

Co

Cr

Ti

Inconel X750

≥70.0

≤0.1

≤0.5

≤0.02

 ≤1.0

≤0.5

≤0.01

≤0.5

5.0~9.0

0.7-1.2

0.4~1.0

 ≤1.0

14.0~17.0

2.25~2.75

Specifications

Product Name

alloy bar & steel bar

Production Process

Cold Drawn,Cold Rolled,Hot Rolled,Bright Anneal etc

Size

5.5-110mm(Hot rolled), 2-50mm(Cold drawn),110-500mm(Forged)

Standard

ASTM EN DIN GB ISO JIS

Tolerance

+/-0.05 ~+/0.02

Surface



 Pickling,Bright; No.1,2B,No.4,BA,8K Satin,Brush,Hairline,Mirror,Polished
180 grits,320 grits,400 grits,600 grits,800 grits polished

Application

Constructions feilds and ship building  industries Petroleum,Chemical  industries,War and electiciy  industries. Food processing and medical  industries. Boiler heat cxchangers,Machinery and hardware feilds.

Materials

Titanium alloy:TI-6AL-4V,TI-5AL-2.5SN,TA1,TA2,TA3,TA4,TA0,TC4

200series:201 202
300series:301,303Cu,304 304L 304H,304H,309S,310,310S,316 316L,316H,316Ti,321,347, 347H,330
400 series: 409L,410,410S,416F,420,420J1,420J2,430,431,440C,441,444,446,
600 series: 13-8ph,15-5ph,17-4ph,17-7ph(630,631),660A/B/C/D,
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760,2304,LDX2101.LDX2404,LDX4404,904L
Others: 153Ma,254SMo,253Ma,654SMo,F15,Invar36,1J22,N4,N6 etc
Alloy : Alloy 20, Alloy28, Alloy31;
Hastelloy: Hastelloy B, Hastelloy B-2,Hastelloy B-3,Hastelloy C22,Hastelloy C-4,Hastelloy S,Hastelloy C276,Hastelloy C-2000, Hastelloy G-35, Hastelloy G-30/X/N;
Haynes: Haynes 230, Haynes 556, Haynes 188;
Inconel: Inconel 100/600/601/602CA/617/625713/718738/X-750;
Incoloy: Incoloy 800/800H/800HT/825/925/926;
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
Monel: Monel 400/K500
Nitronic: Nitronic 40/50/60;
Nimonic: Nimonic 75/80A/90 ;





Complete specifications, stock in stock
Strip, sheet (thick plate, medium plate, sheet, steel plate), bar (black bar, light bar, grinding bar, round bar, square bar, steel bar), pipe (capillary, seamless pipe, steel pipe), Forgings (flanges, elbows, bolts, nuts, tees), welding consumables (welding rods, welding wire, welded pipes), wire and other materials.
Application areas:
This alloy is mainly used in the manufacture of aero engines. Working below 800 ° C and requiring high strength, corrosion resistant ring parts, structural parts and bolts, etc., plane springs and coil spring flat wave springs with medium or low stress and requiring relaxation resistance below 540 ° C, Parts such as circumferential coil springs, helical compression springs, spring collars and seals. It can also be used to make parts such as turbine turbine blades.
